Name: Tennis Court System (Doubles) | Includes Court Markings
Brand: Gym Flooring
SKU: tennis-court-system-doubles-includes-court-markings
Availability: InStock

Our Tennis Court (Doubles) package consists of a Doubles Tennis Court (23.7m x 10.9m) in one colour for outdoor use with complete Tennis Court Lines pre-painted in White.

The ready-to-use system arrives in labelled boxes with numbered sections for easy assembly, meaning you can set up your court in any location with instant access to all-season gameplay.

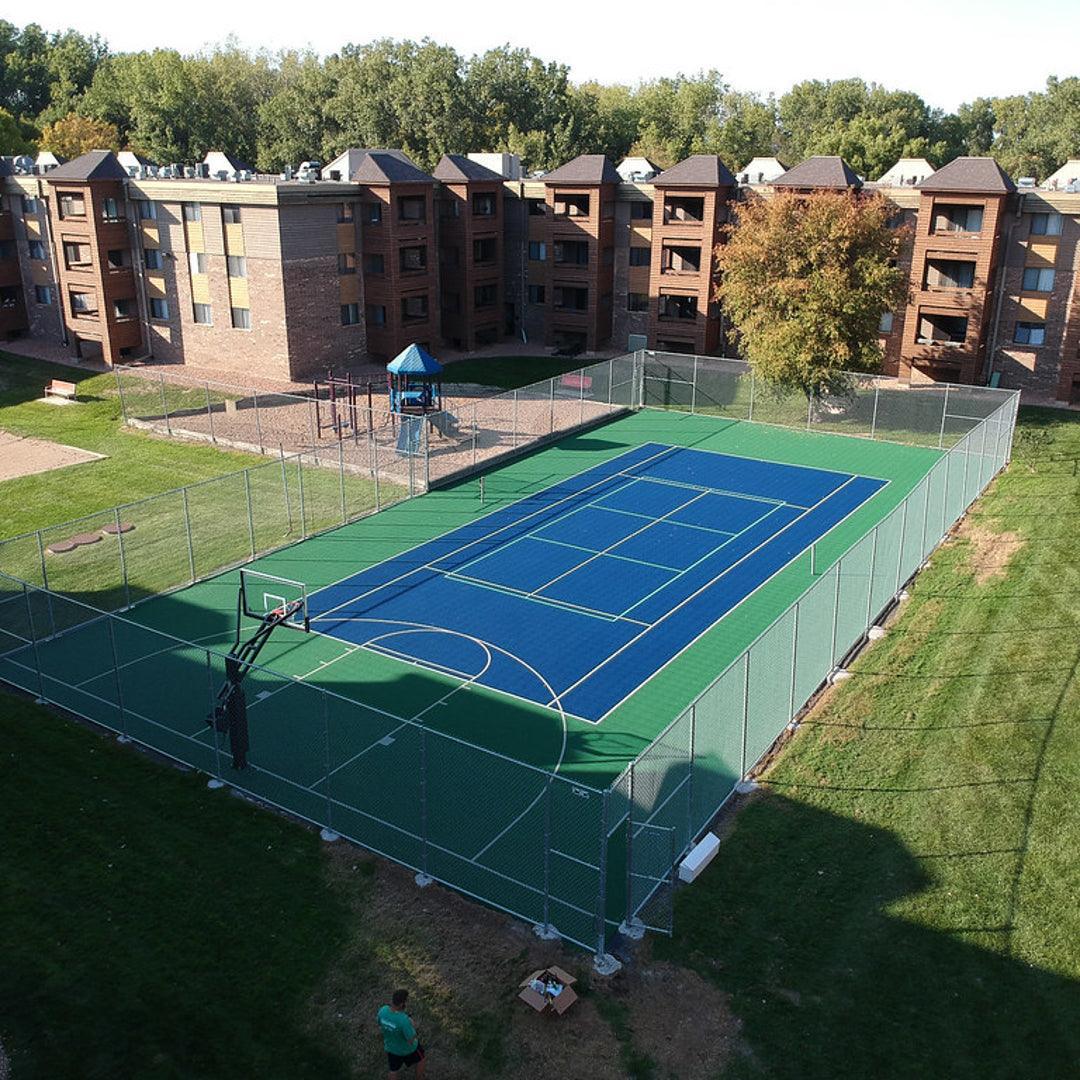

AS INSTALLED IN

Elite Elastic PP Tennis System

The Elite Elastic Tile system has been specifically chosen for tennis thanks to its durable, textured surface and robust build, delivering outstanding shock absorption and stability underfoot.

Engineered to suit the fast-paced and demanding nature of tennis, these modular tiles provide consistent ball bounce and excellent surface response, enhancing gameplay for players of all levels.

The specialised surface boosts grip and resists wear, allowing for quick pivots, sharp cuts, and fluid lateral movement — all while reducing strain on joints and muscles.

Ideal for both indoor and outdoor use, the system supports unrestricted movement and long-lasting comfort during play.

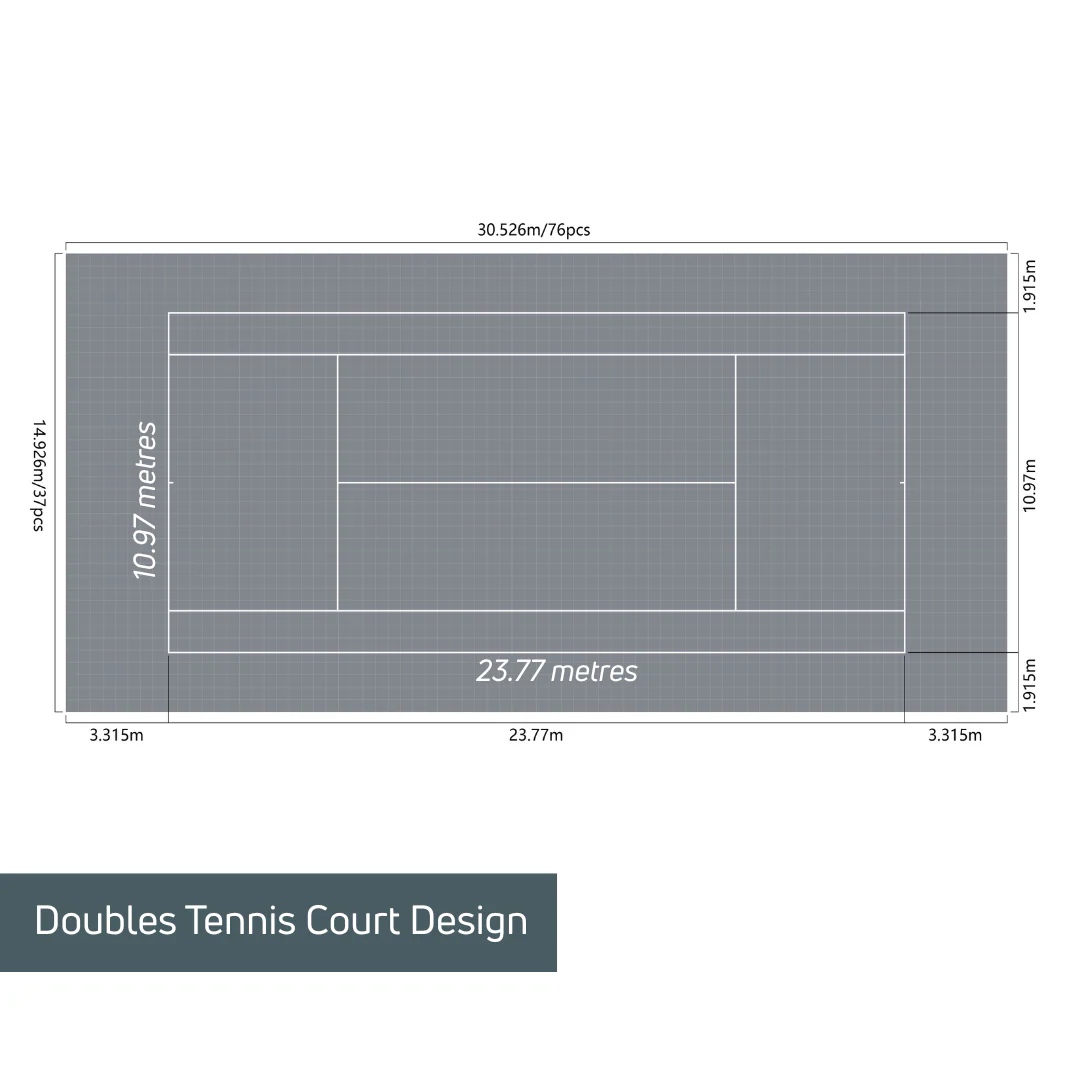

Doubles Tennis Court Design

Installed Area: 23.77m x 10.97m

Total Surface Area: 449.92m2

Edge Pieces: 137 Pairs

Corners: 4

Suitable for:

Tennis Clubs & Facilities
Outdoor Sports & Recreation Grounds
Competition & Event Venues
Training Centres
Domestic Garden Use

Built for Durability

Integrated rapid water drainage
High UV Stability
All-season play, with excellent grip—even in wet conditions

Top-Level Performance

Superior ball bounce, rebound strength, and shock absorption
Improved player safety and injury prevention
Tested by ITF & ITTF

Product Specification - Elite Elastic PP

Material: High Performance Polypropylene Copolymer

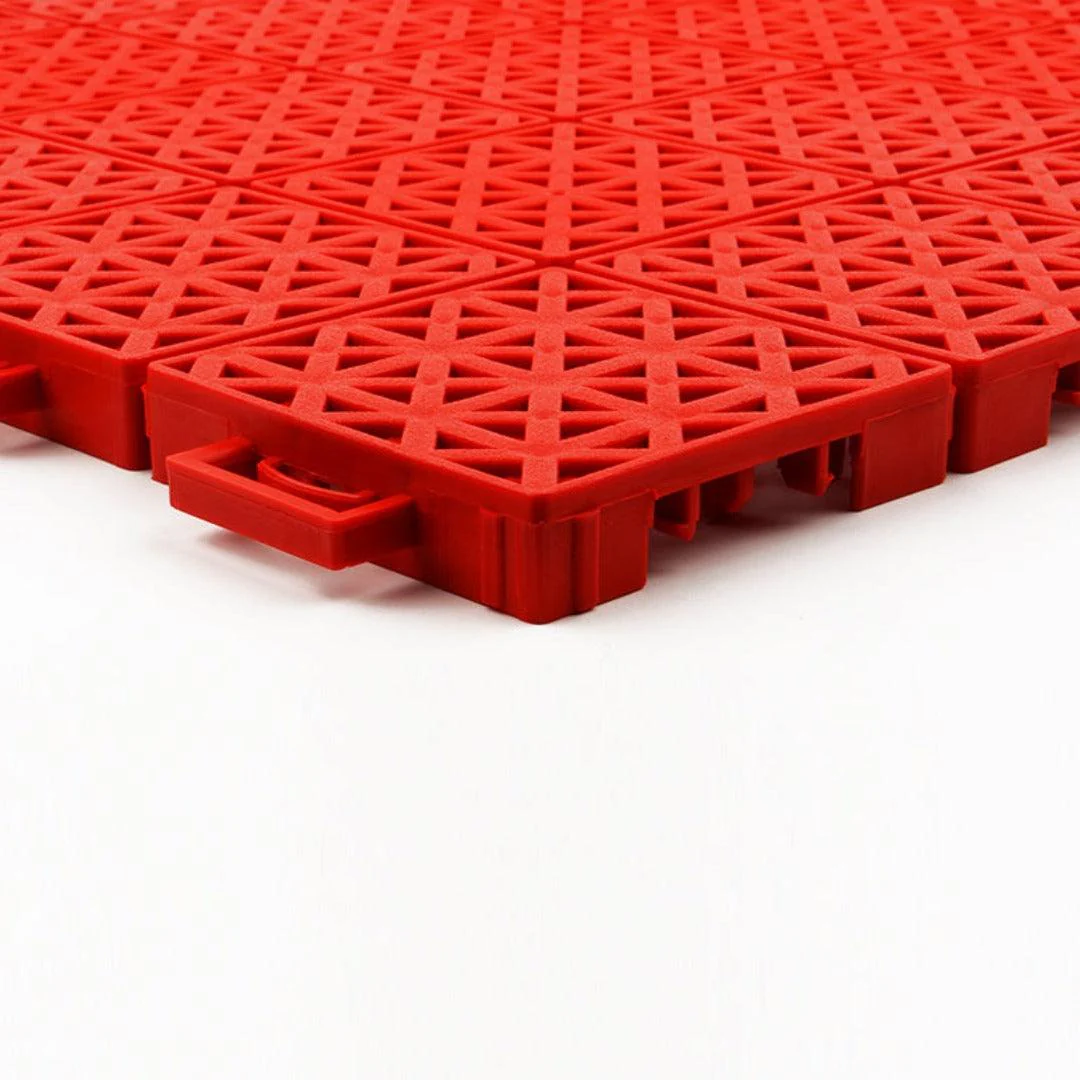

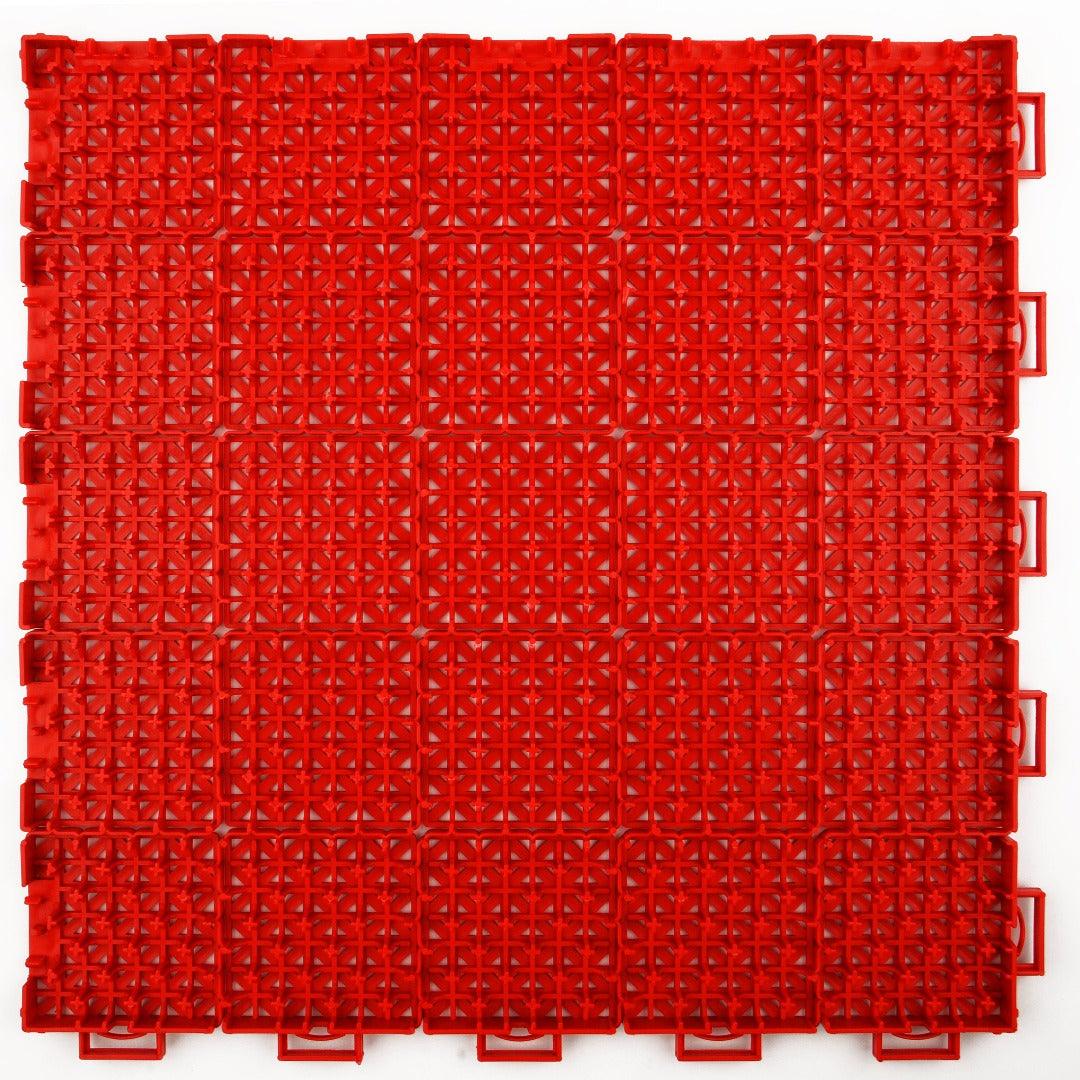

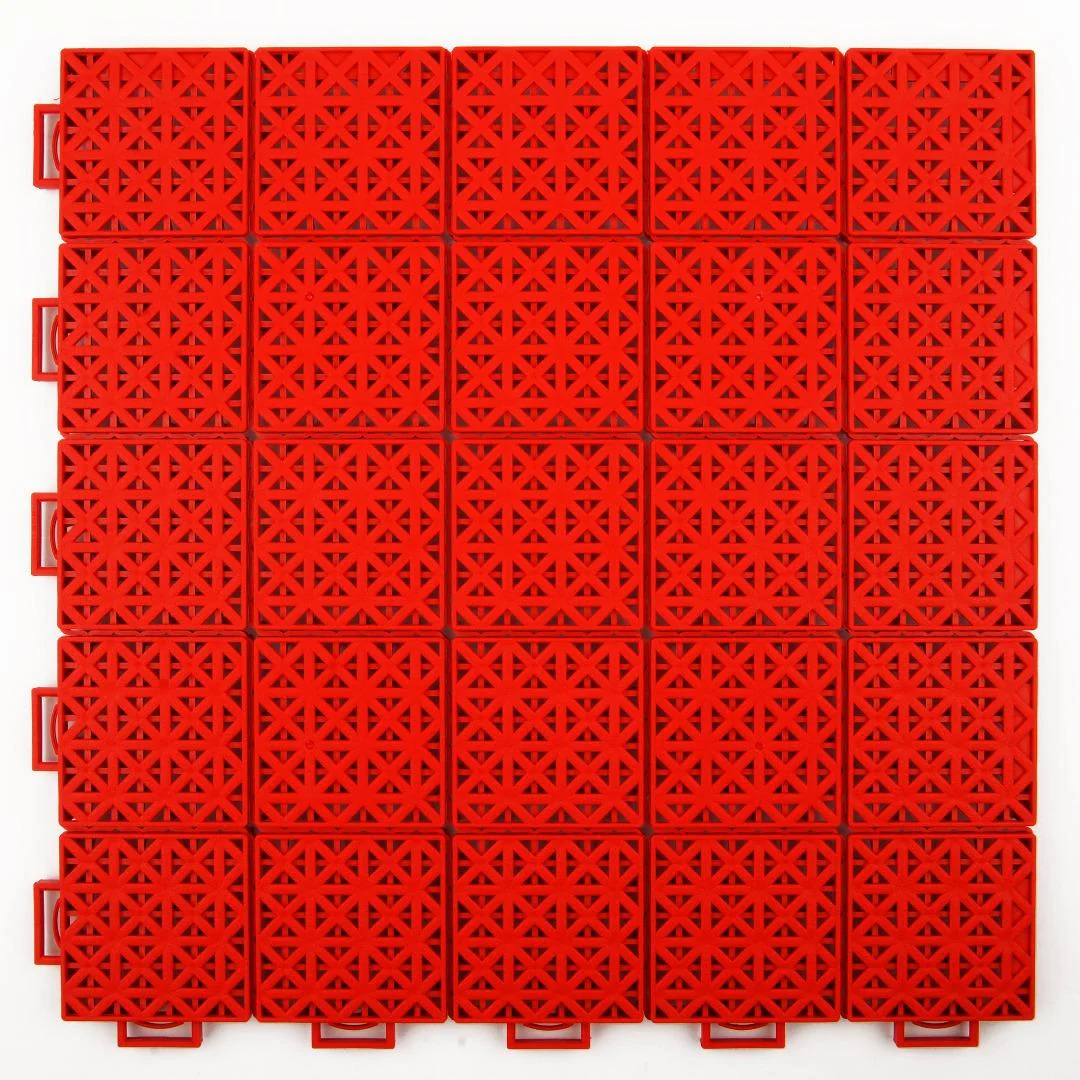

Tile Size: 40cm x 40cm x 1.58cm
Edge Size: 40cm x 6.2cm
Corner Size: 6.2cm x 6.2cm

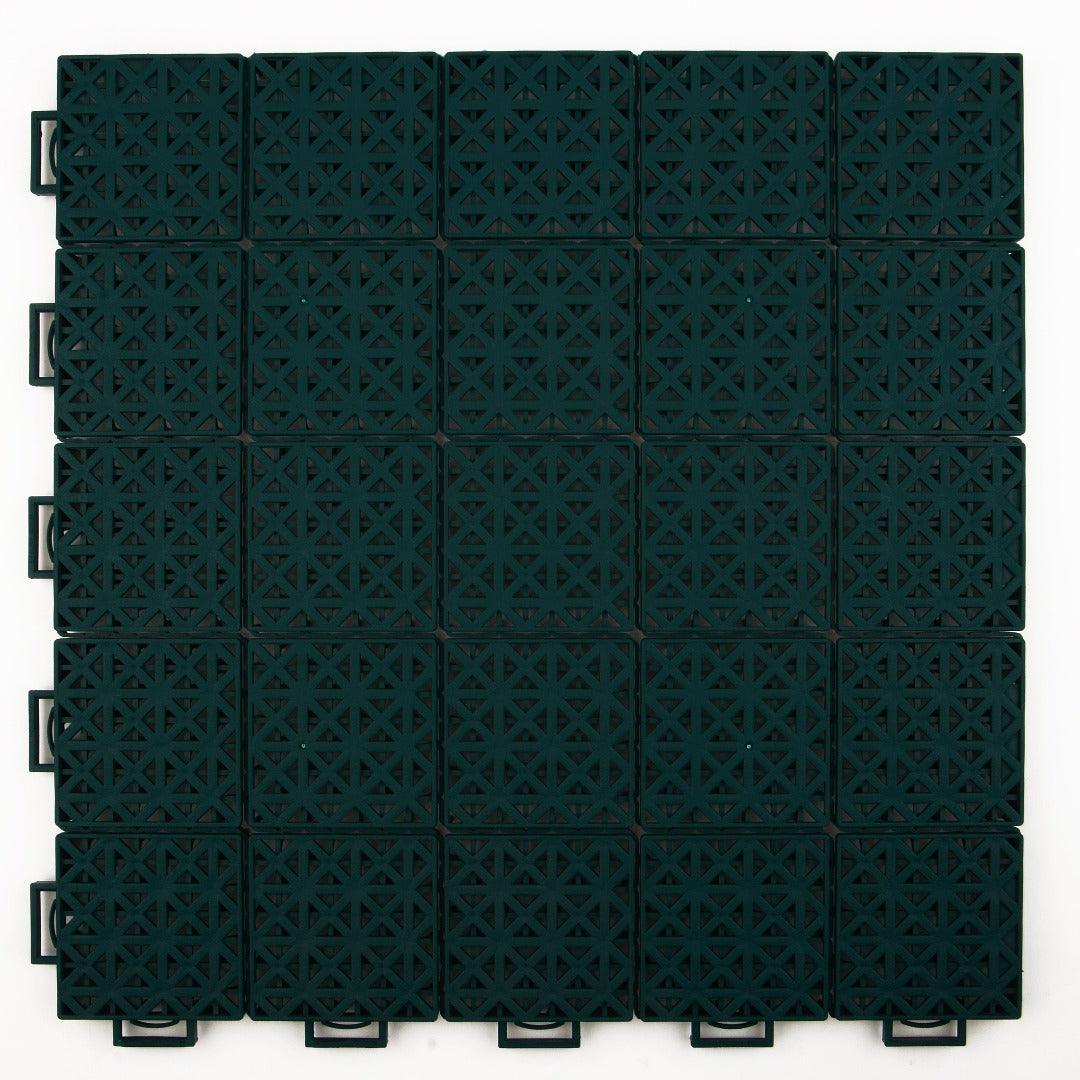

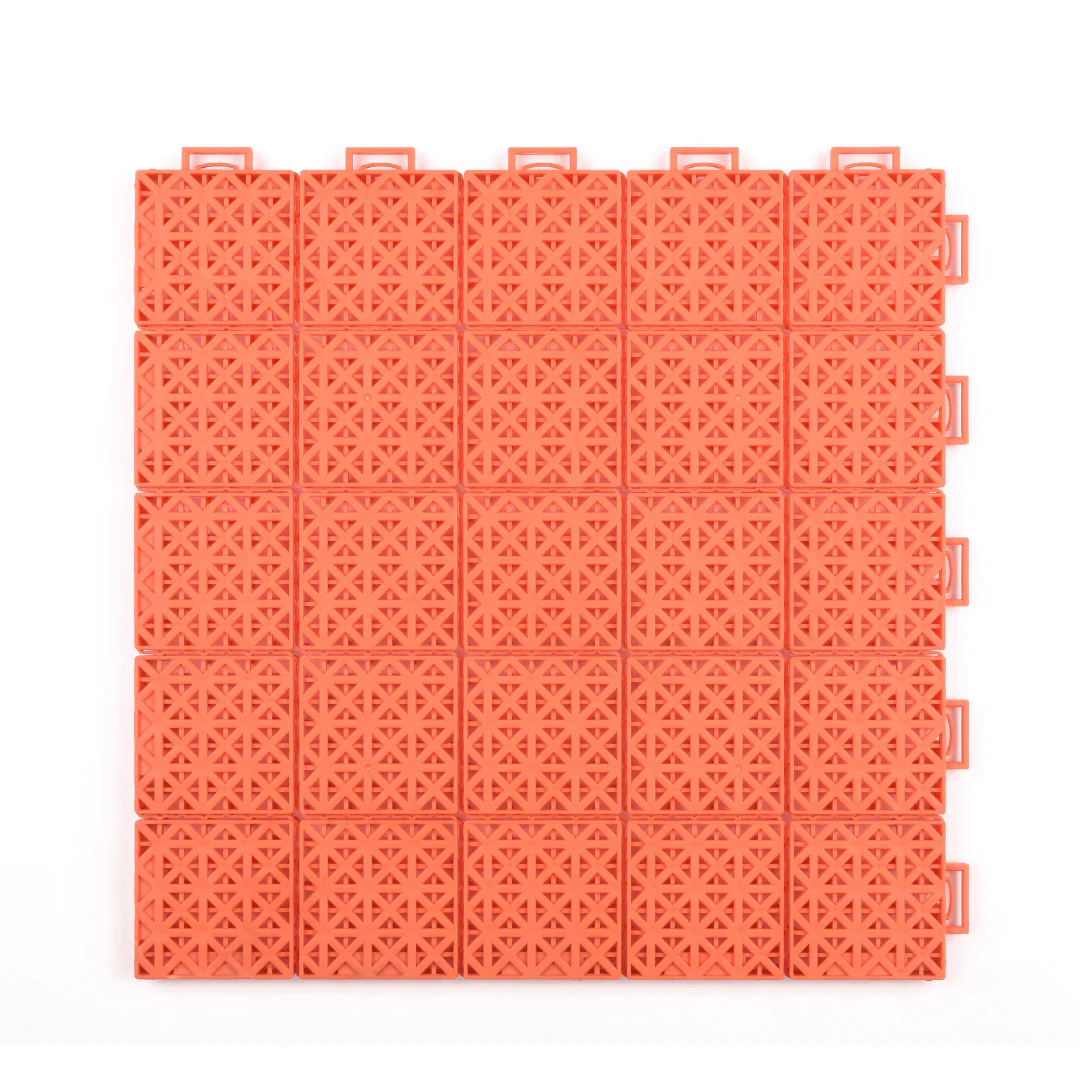

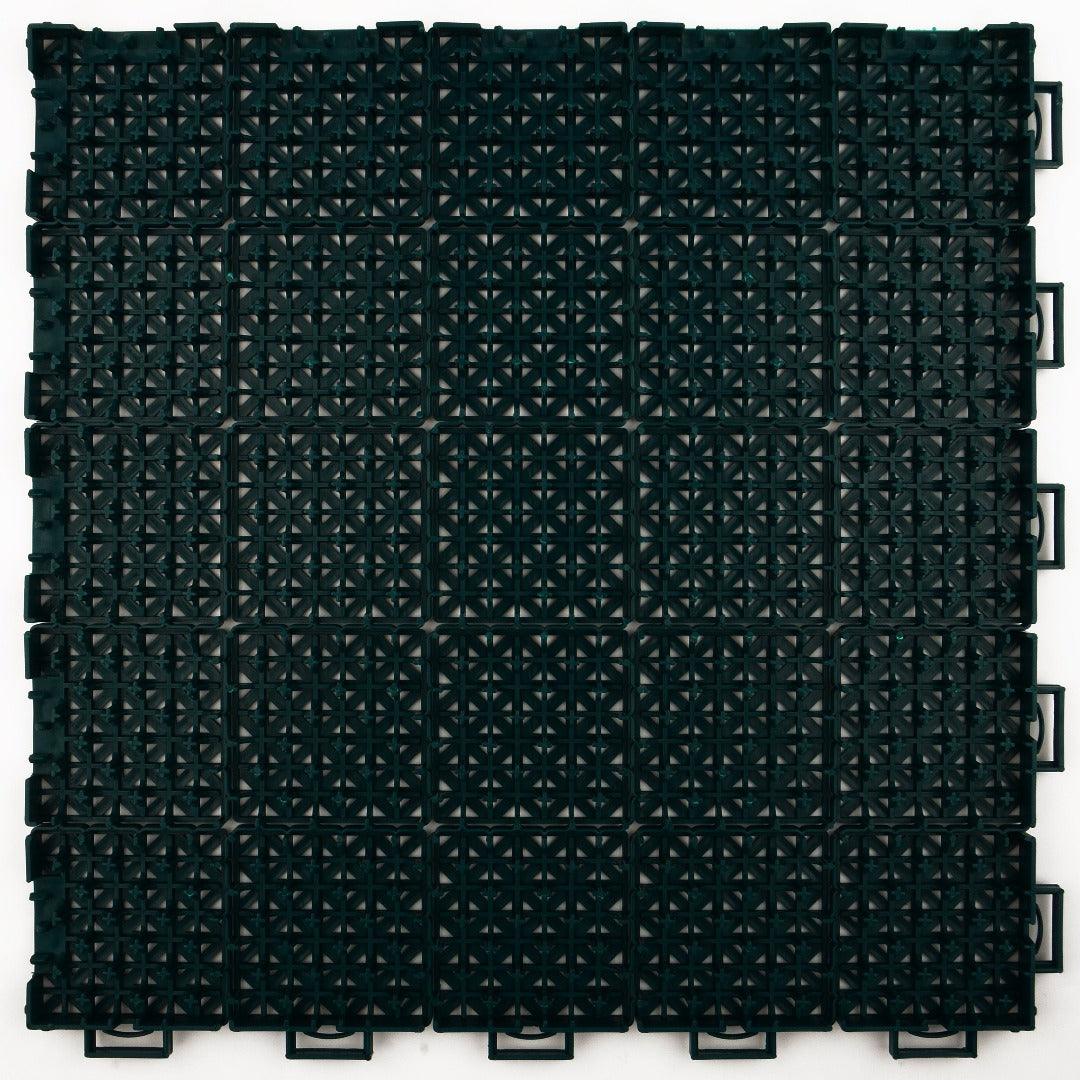

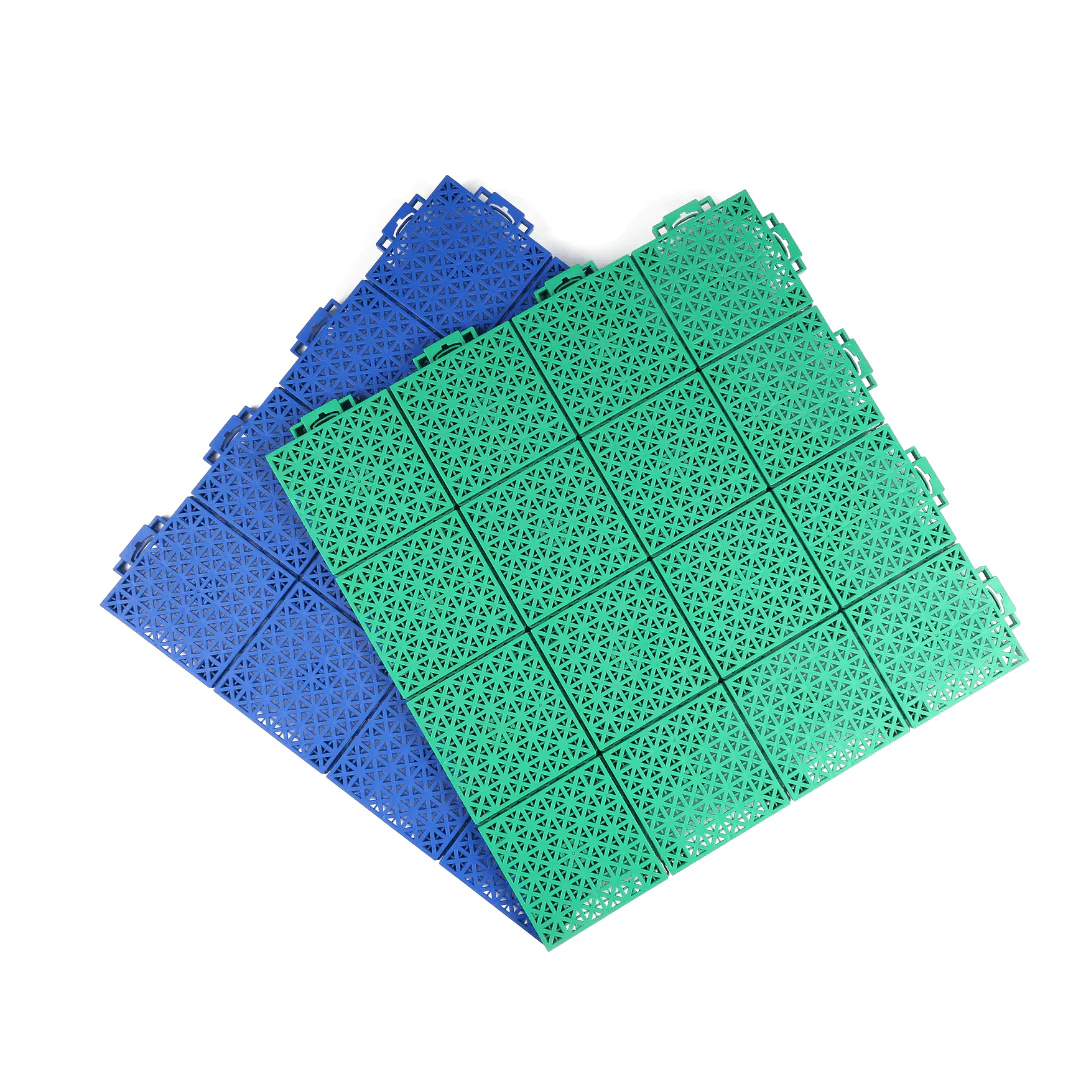

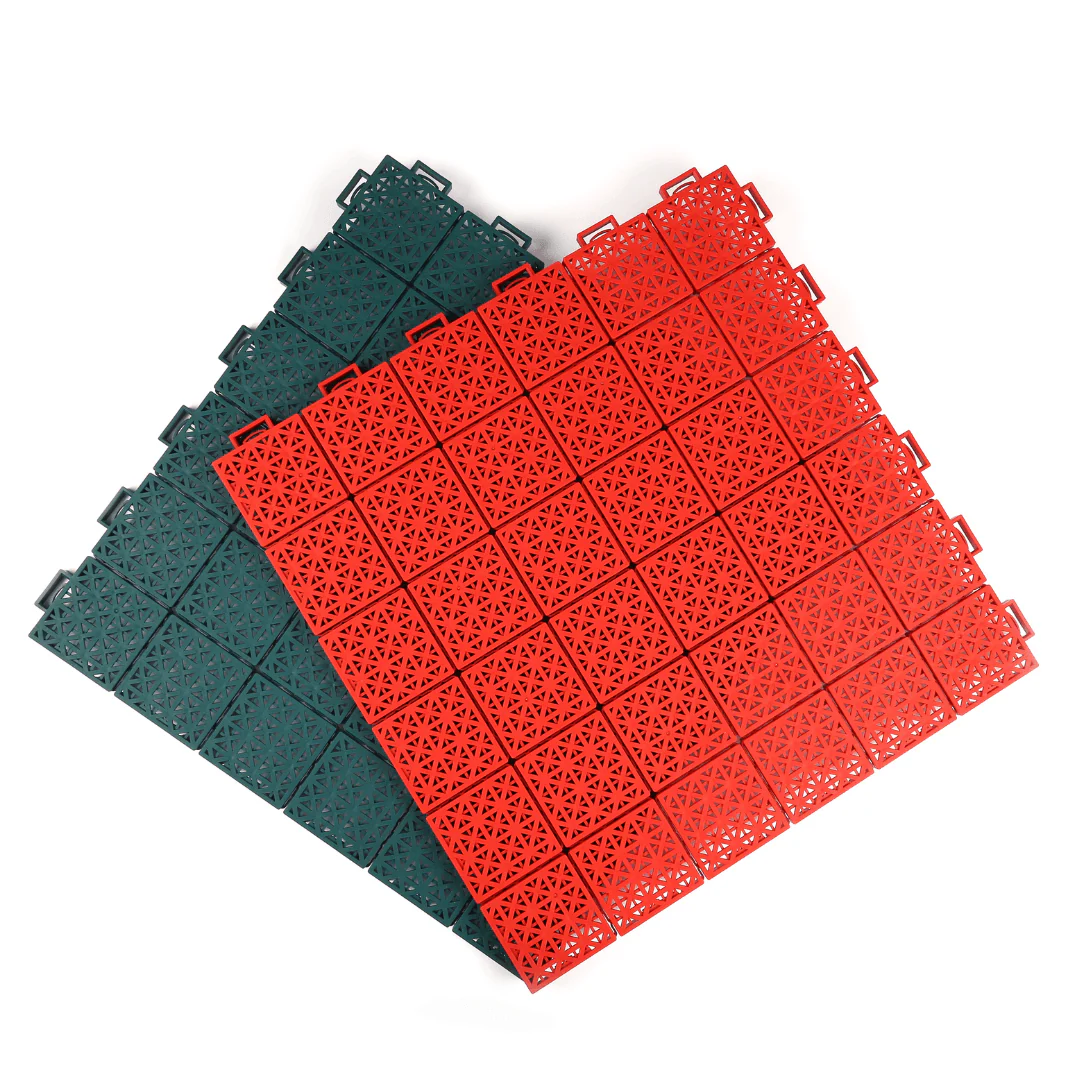

Colour Options: Red, Dark Blue, Light Blue, Dark Green, Light Green, Orange, Yellow, Mid Grey and Dark Grey
Installation: Soft Connection Interlocking System - See Installation Guide
Subfloor: Please see recommendations

Features

6 Year Warranty
Self-Draining System
Antibacterial Surface
Conforms to ISO 9001 / ISO 14001
Water-Permeable & UV-Stable
Quick-Lock, Soft Suspension System

Material	100% Natural PP
Slip Resistance	102 BPN
Bounce Rebound	99%
Force Reduction	16%
Friction Coefficient	0.5
Shock Absorption Rate	>53%
Temperature Test	Tested in High and Low Temperatures (70°C / 40°C, 24hr)
Quality Guarantee	6 Years
Certified	CE, SgS, RoHS, ISO

Important Information — Bespoke & Made-to-Order Product

This product is Bespoke / Made-to-Order, manufactured specifically to your individual requirements, dimensions or specifications (such as custom court sizes, line markings or colours).

Due to the custom nature of this product, it is exempt from standard distance selling cancellation rights under the Consumer Contracts Regulations 2013. By placing an order, you agree to the following:

1. Order Confirmation & Production: Once your order is placed and payment is confirmed, manufacturing begins immediately. From this point, the order cannot be amended, cancelled or refunded.

2. Returns & Refunds: As this product is manufactured specifically for you, we cannot accept returns or offer refunds unless the product is proven to be faulty, damaged in transit or not manufactured to the agreed specification.

3. Faulty or Damaged Goods: In the unlikely event your product arrives damaged or defective, please contact us within 48 hours of delivery with photographic evidence. We will repair or replace the item in line with your statutory rights.

4. Payment & Chargeback Policy: We accept all major payment methods including credit cards. However, initiating a chargeback or Section 75 claim on the basis of a change of mind, or because you no longer require the product, is not a valid ground for dispute on a bespoke item. We reserve the right to contest any such claim using these terms as evidence of the custom nature of the goods.

By completing your purchase, you confirm you have read and accepted these terms.

Colour Options

Please note that specific colour choices may incur a lead time of up to 8 weeks.

Have questions or want a bespoke design consultation? Contact us today and we’ll help build your dream court.
