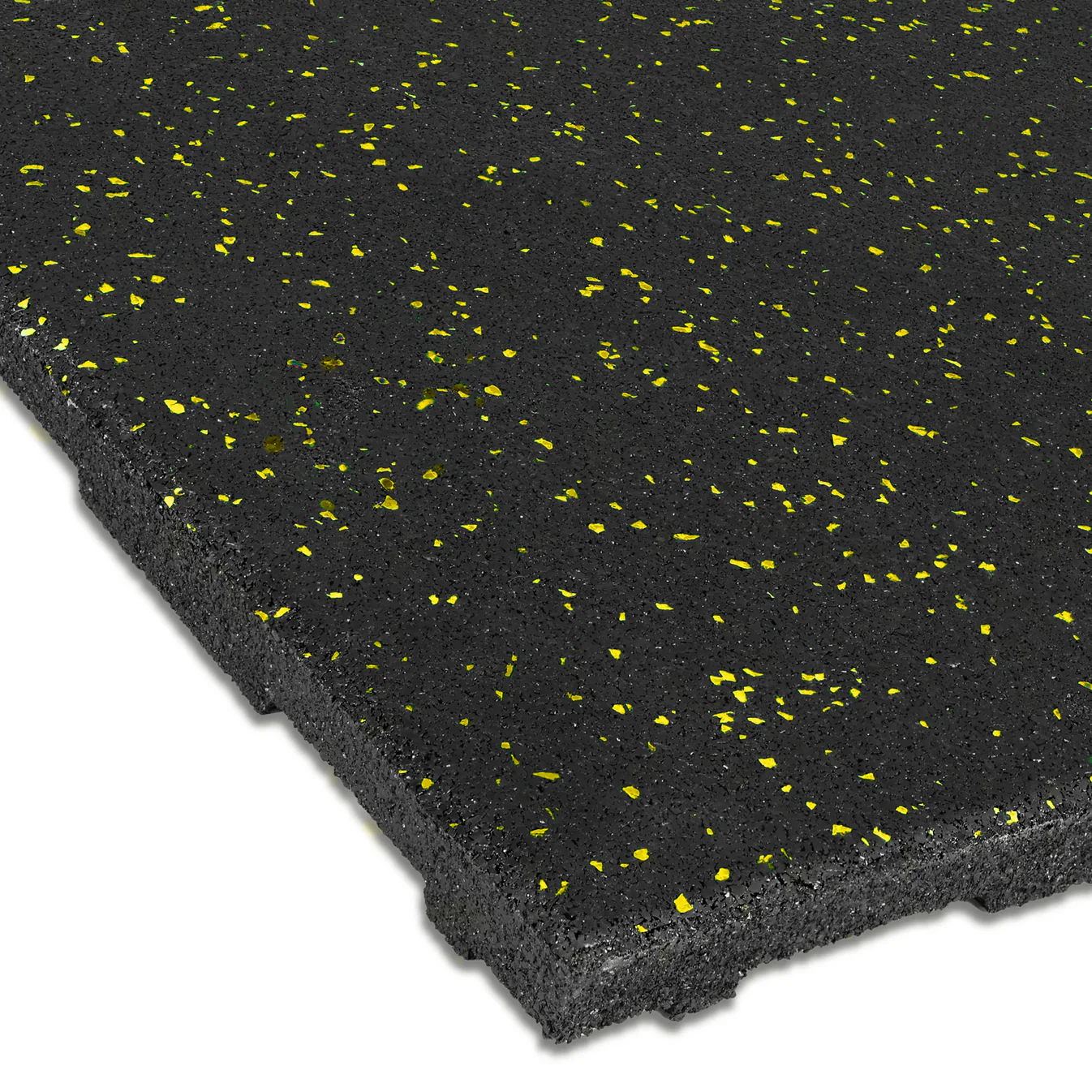

The Konnecta 20mm tile is formulated from quality HD rubber, has a simple assembly and offers maximum structural support (the tiles remain in position) during high impact activity.

Also see Snowflake Gym Flooring Tile and Seahawk designer gym flooring.

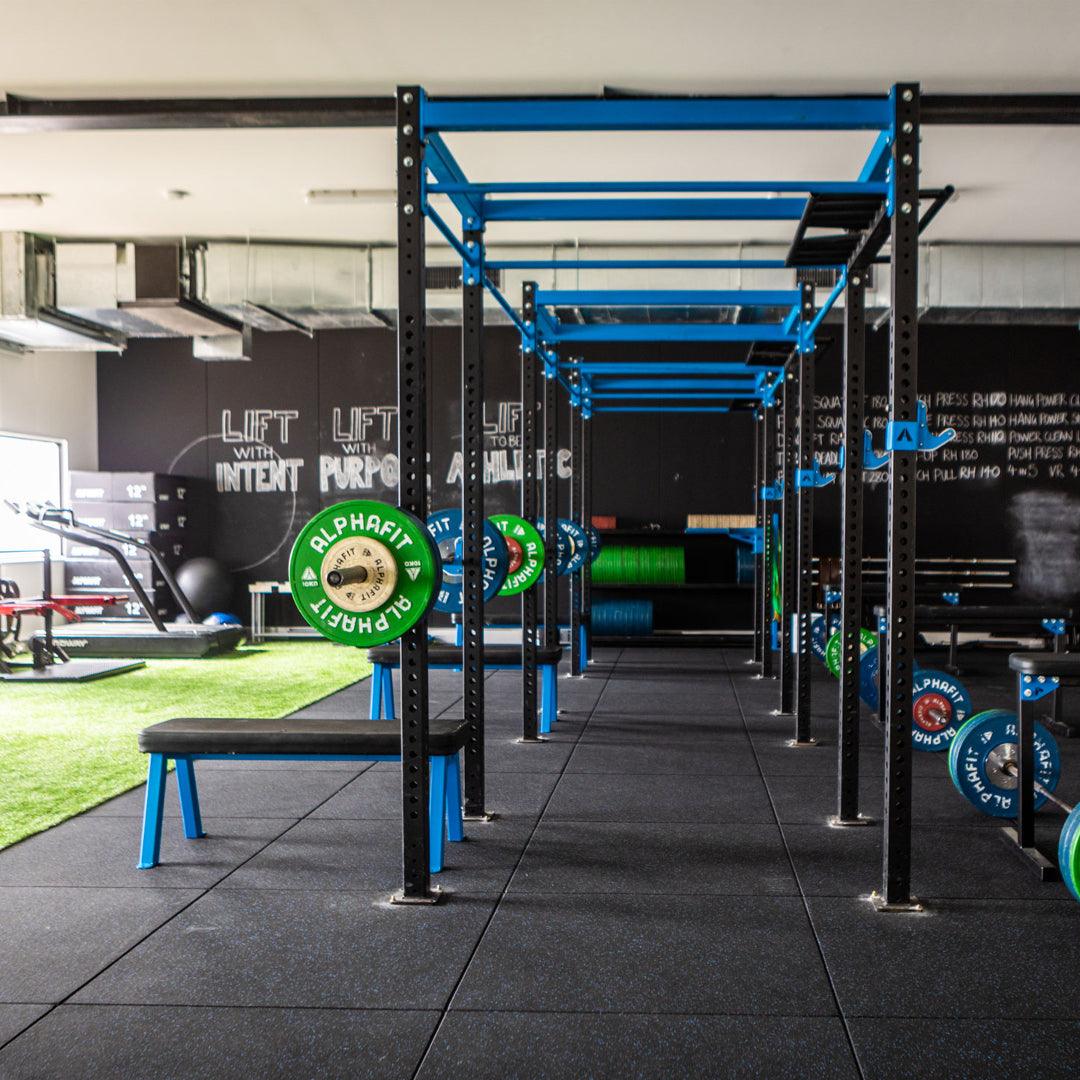

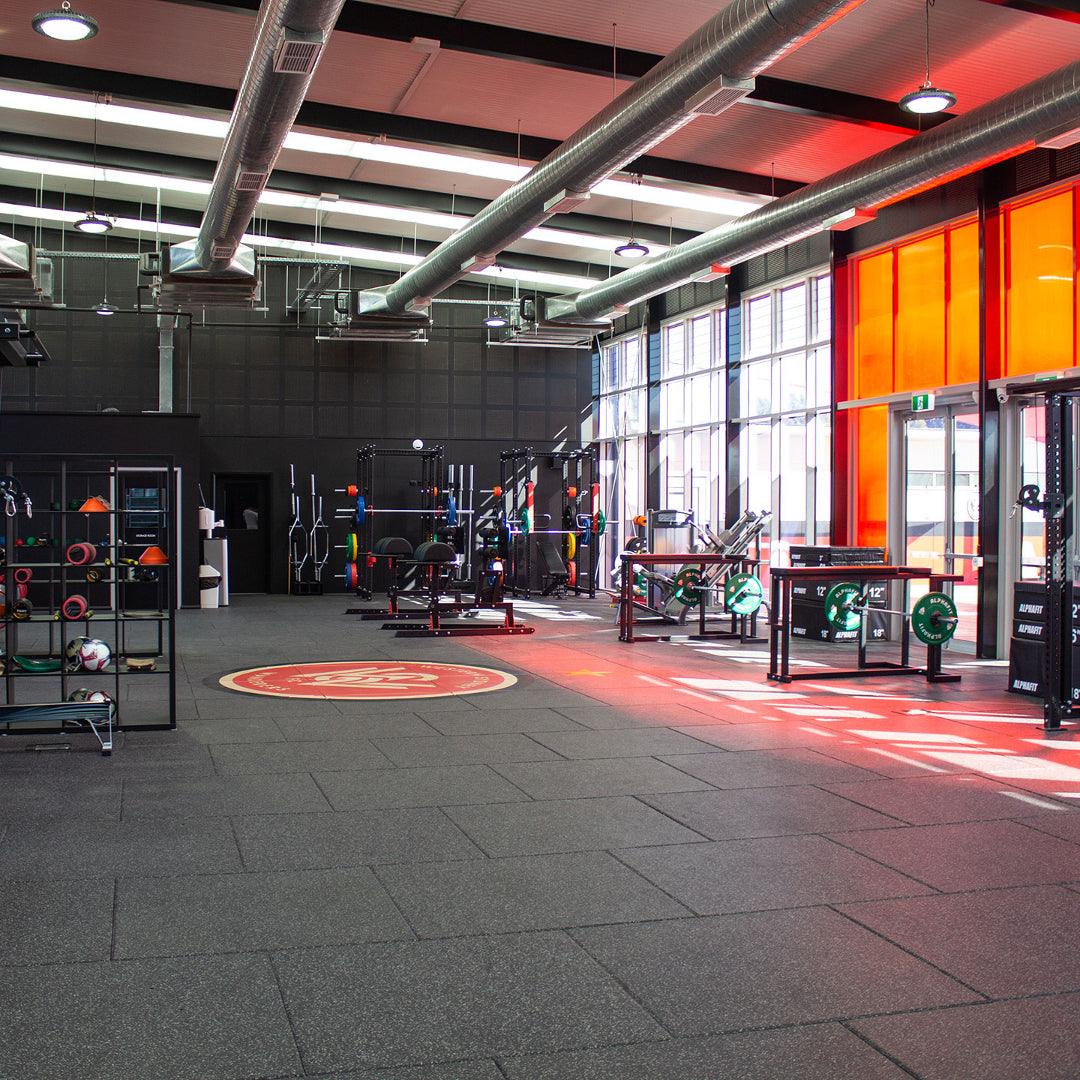

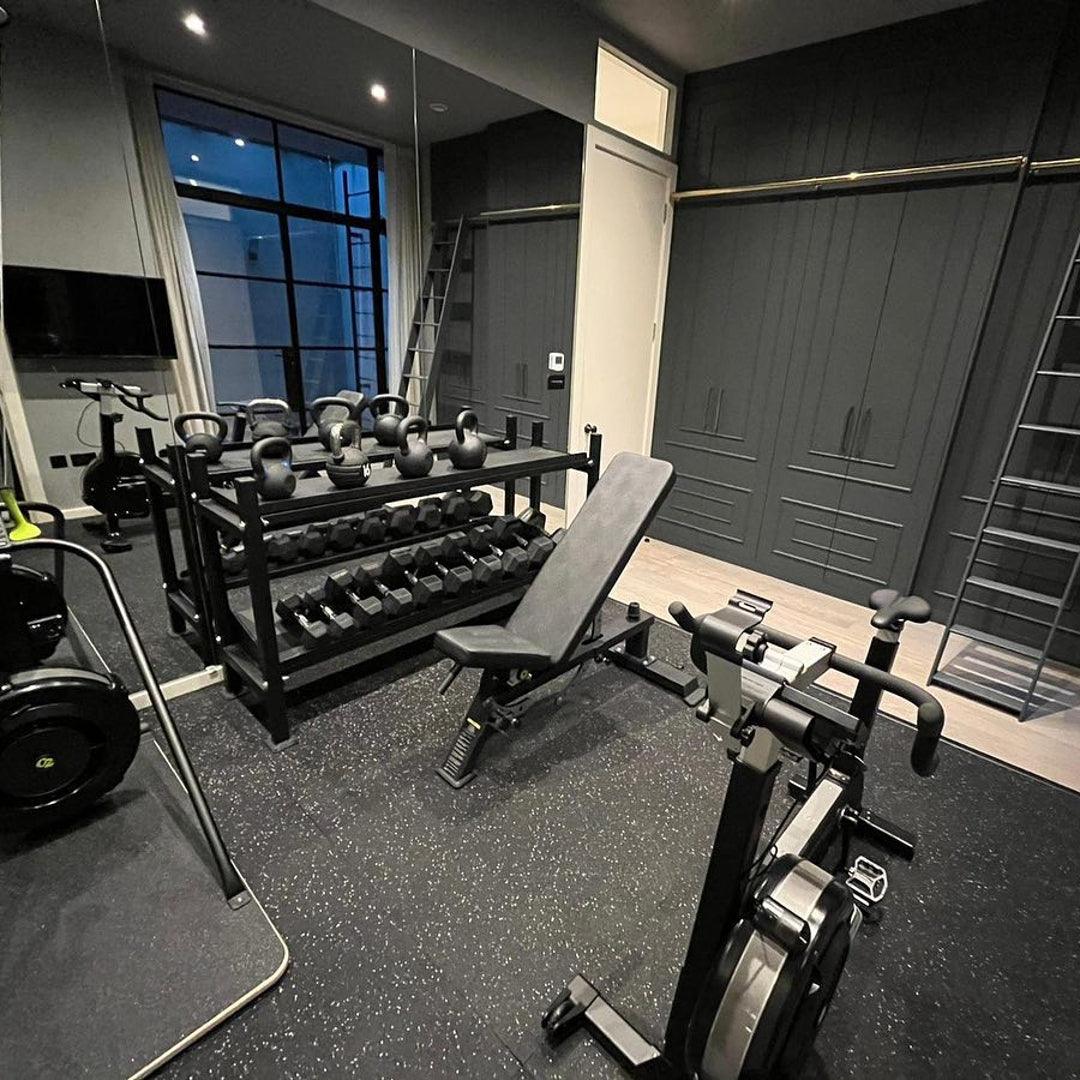

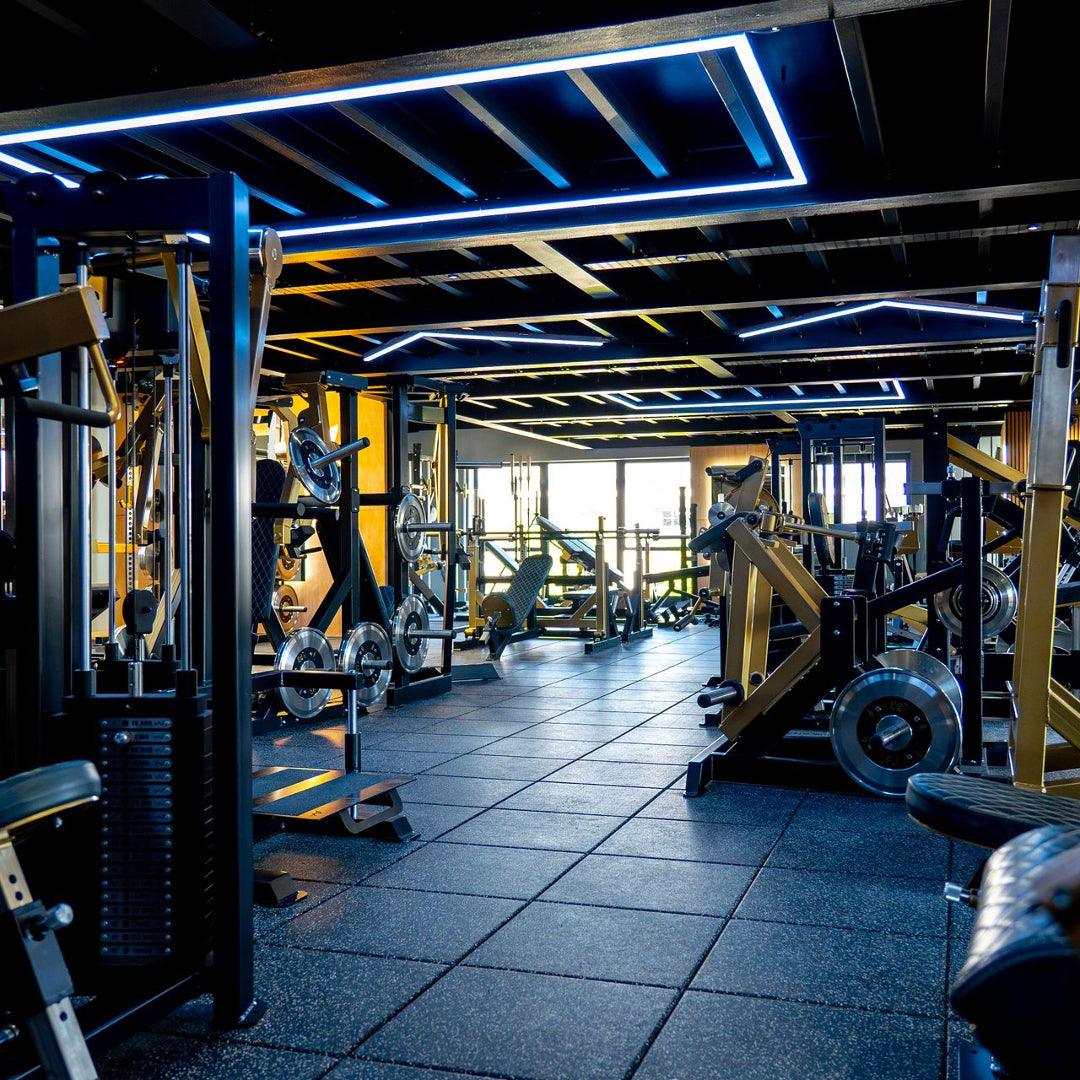

AS INSTALLED IN

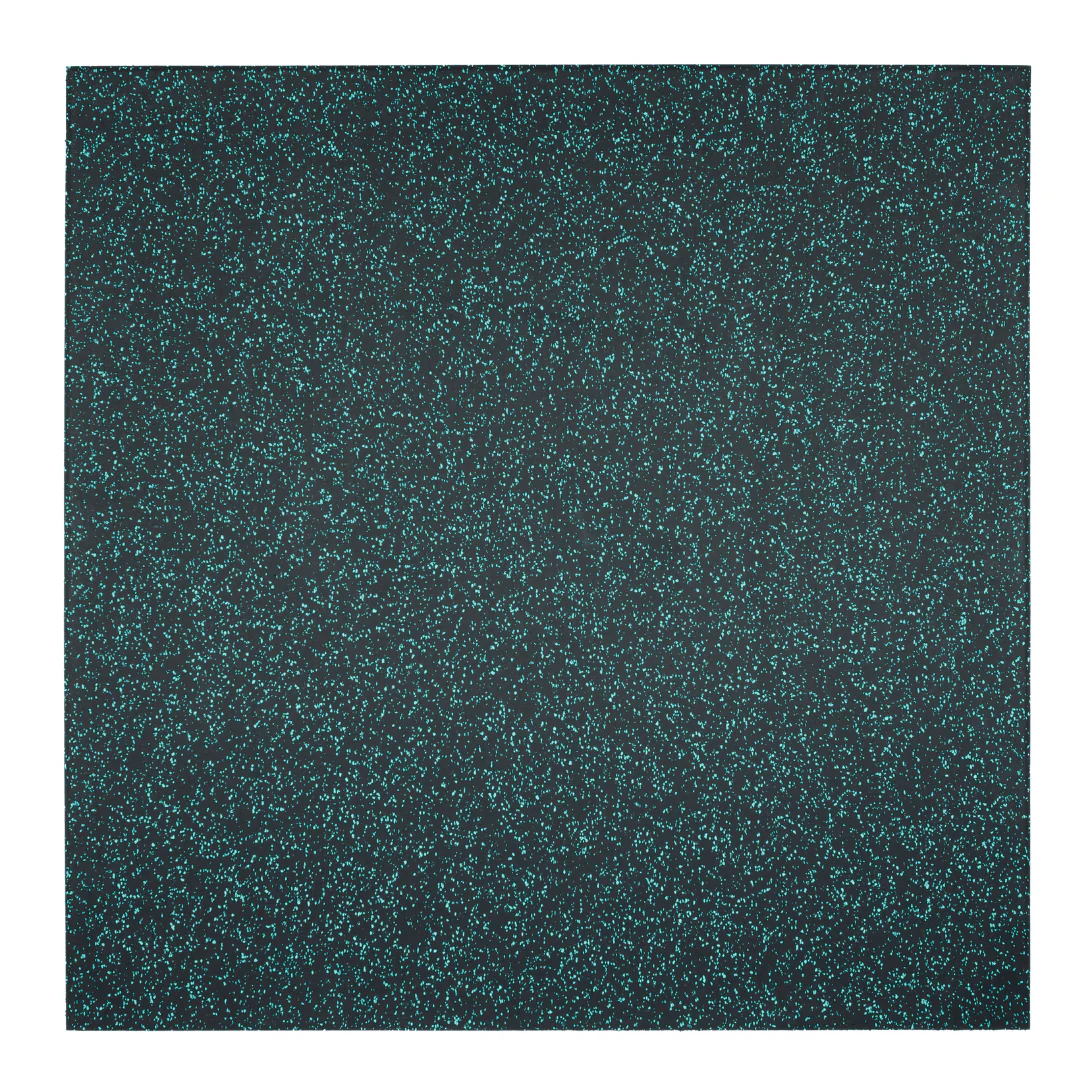

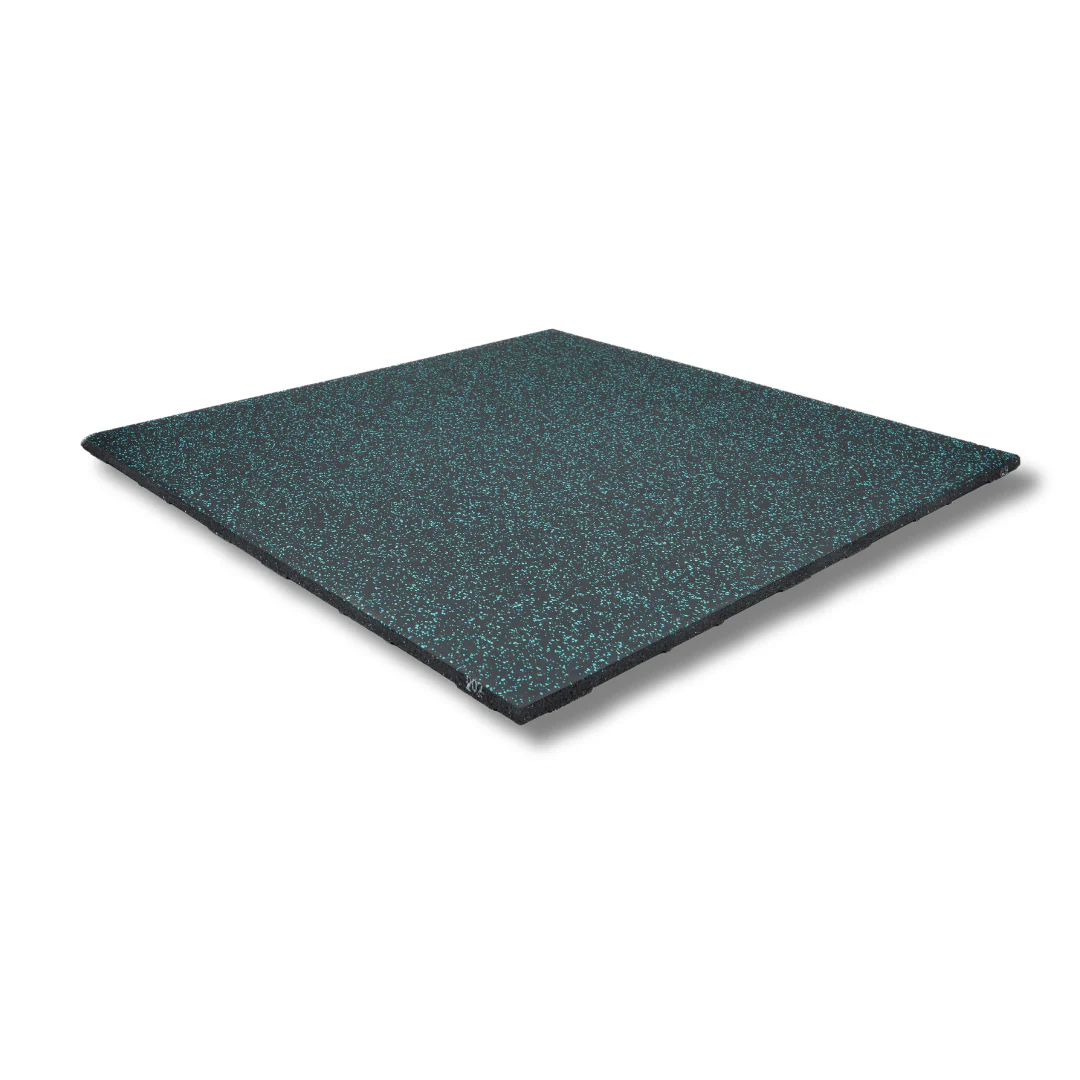

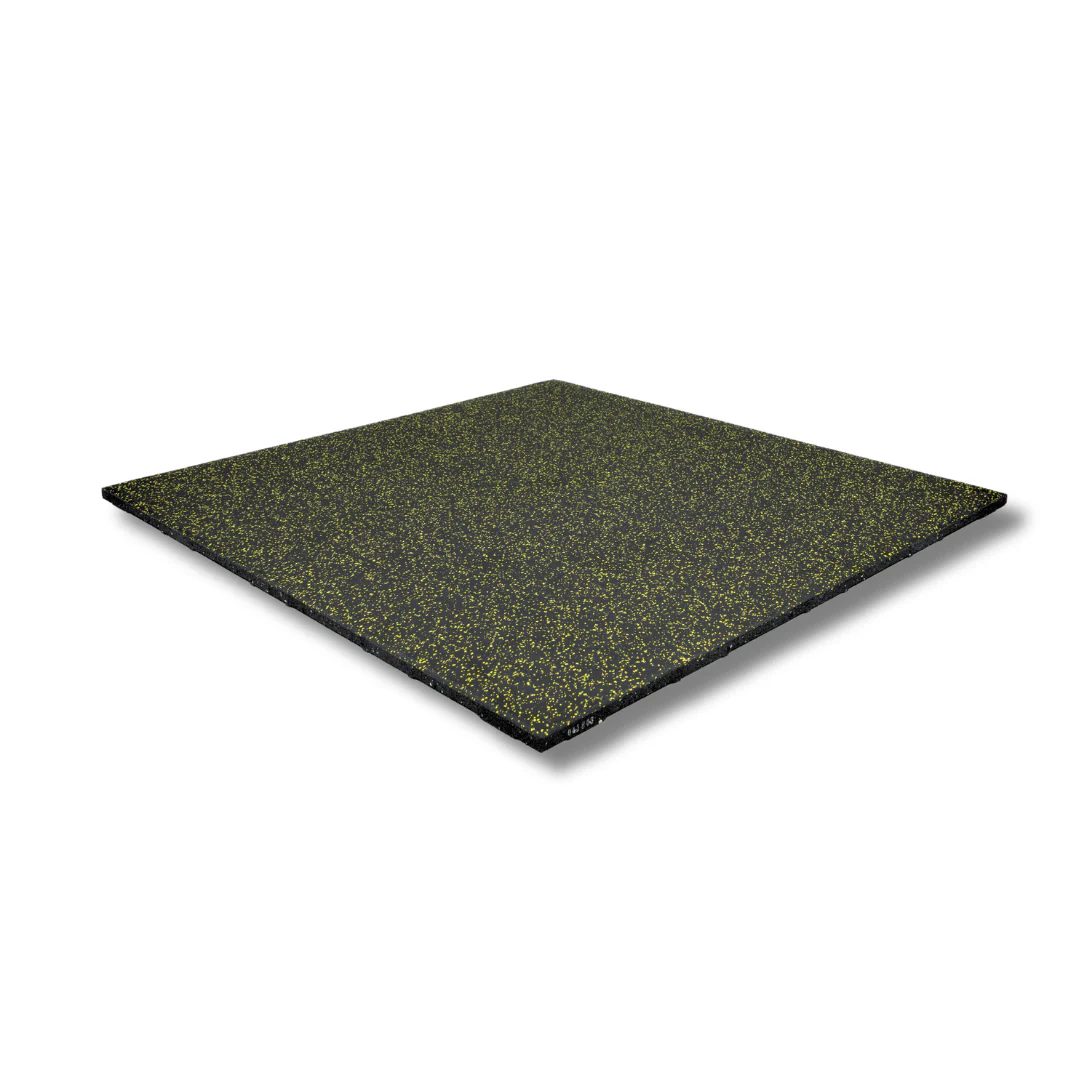

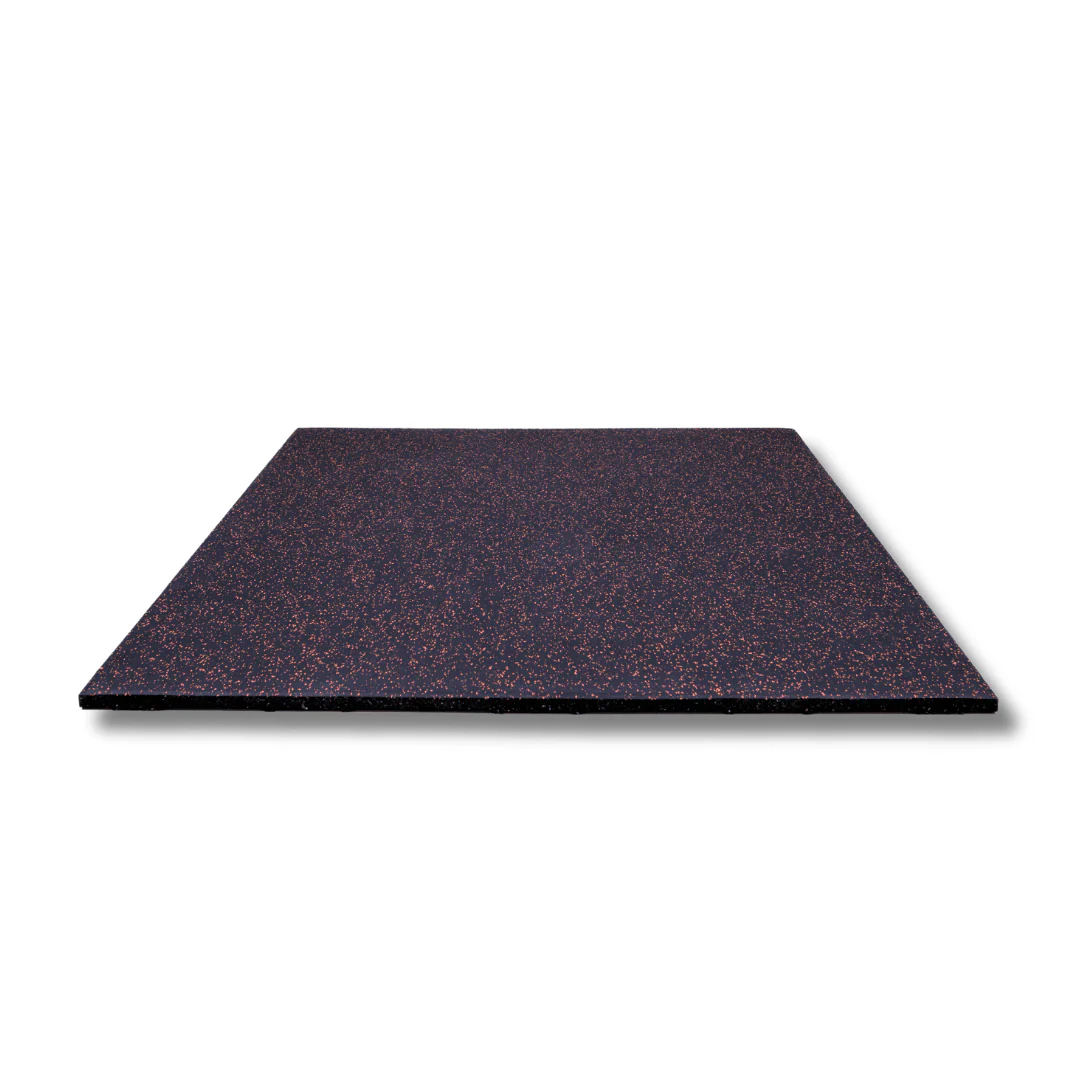

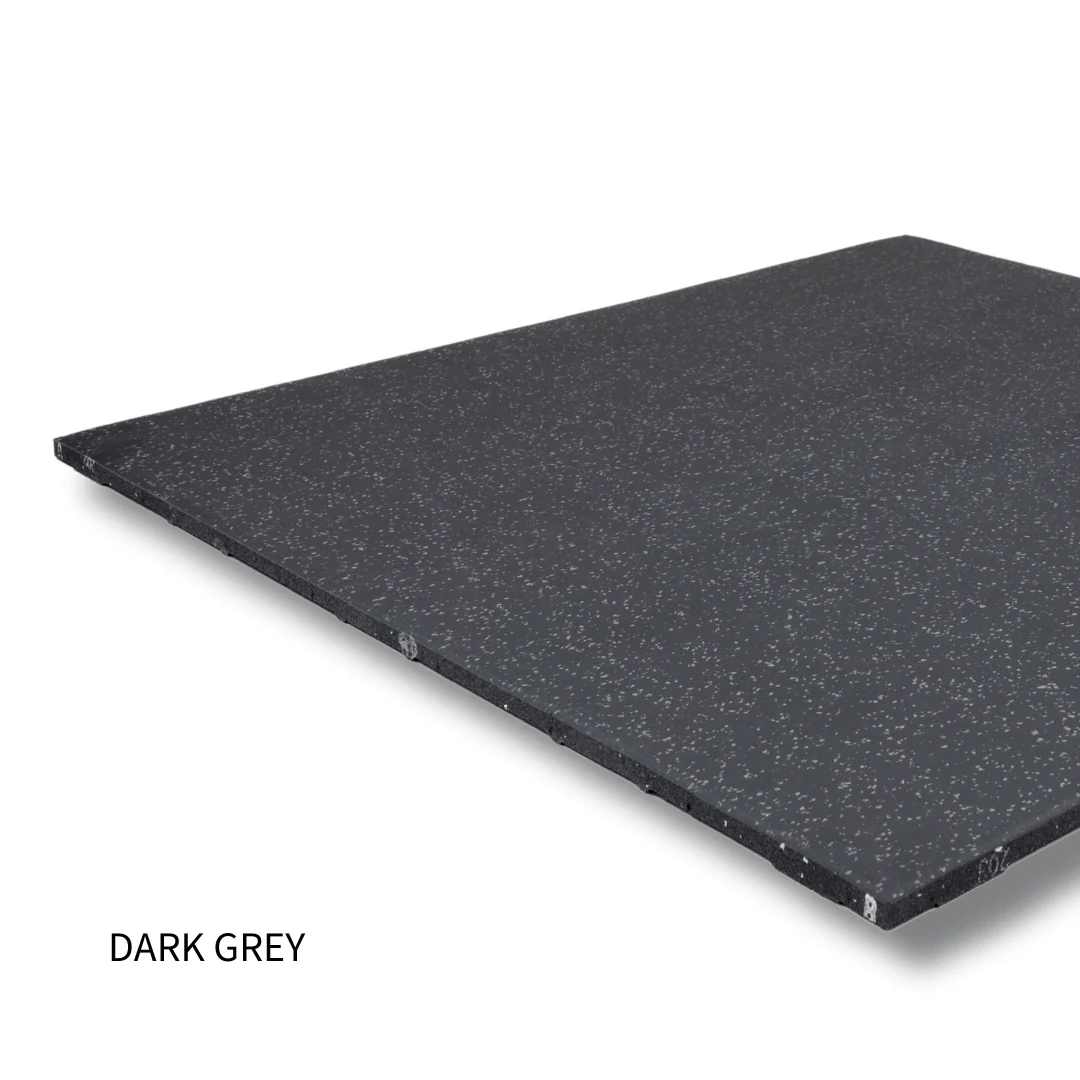

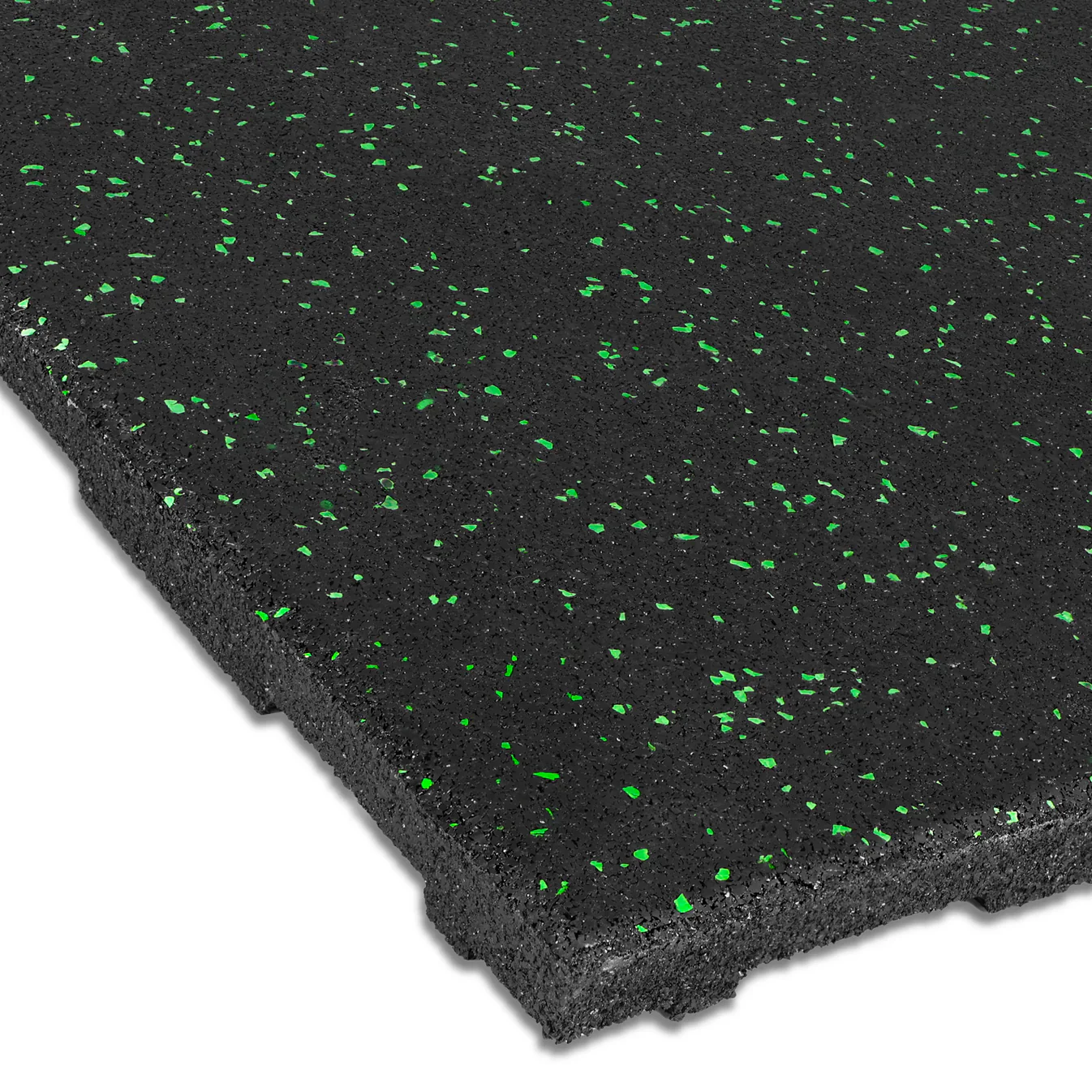

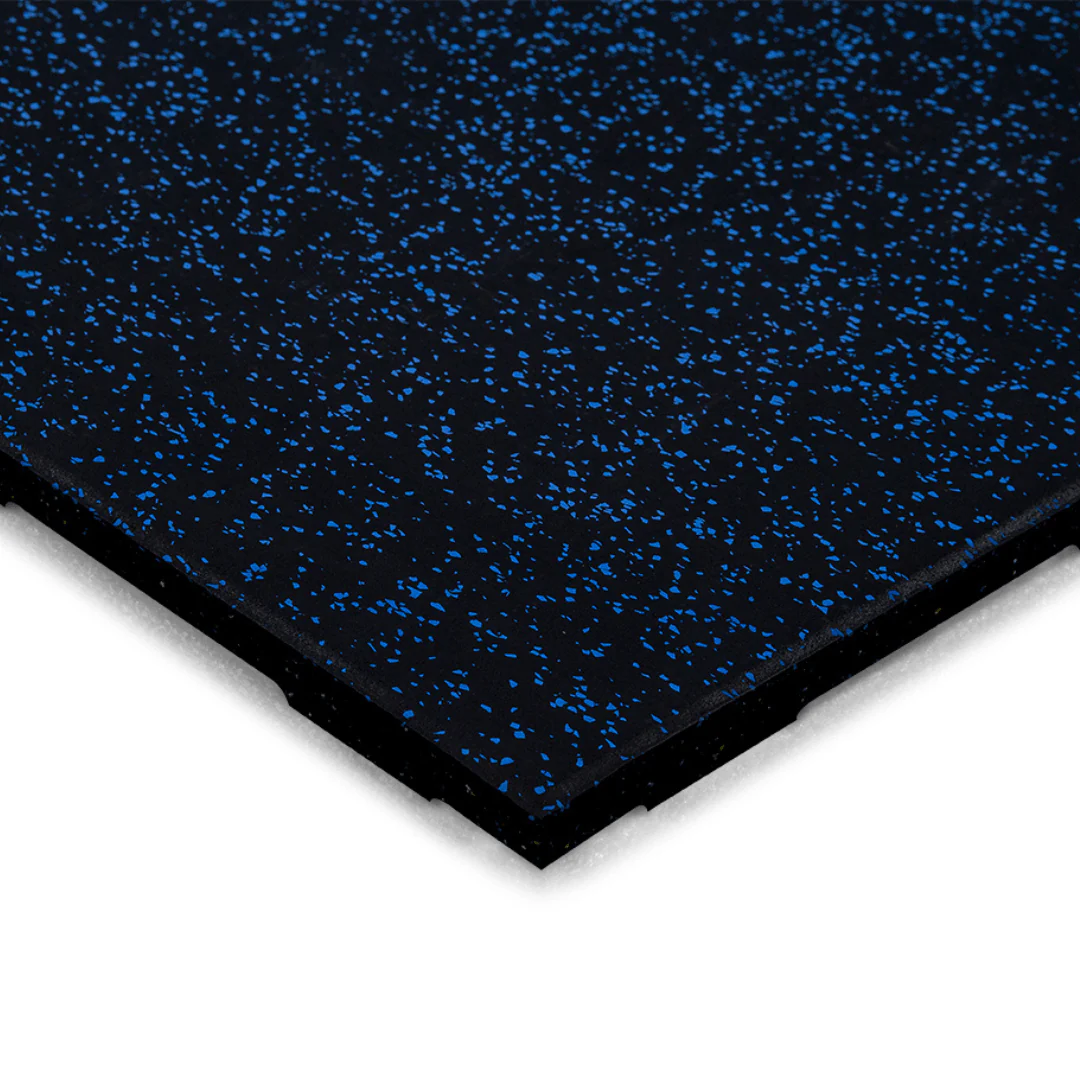

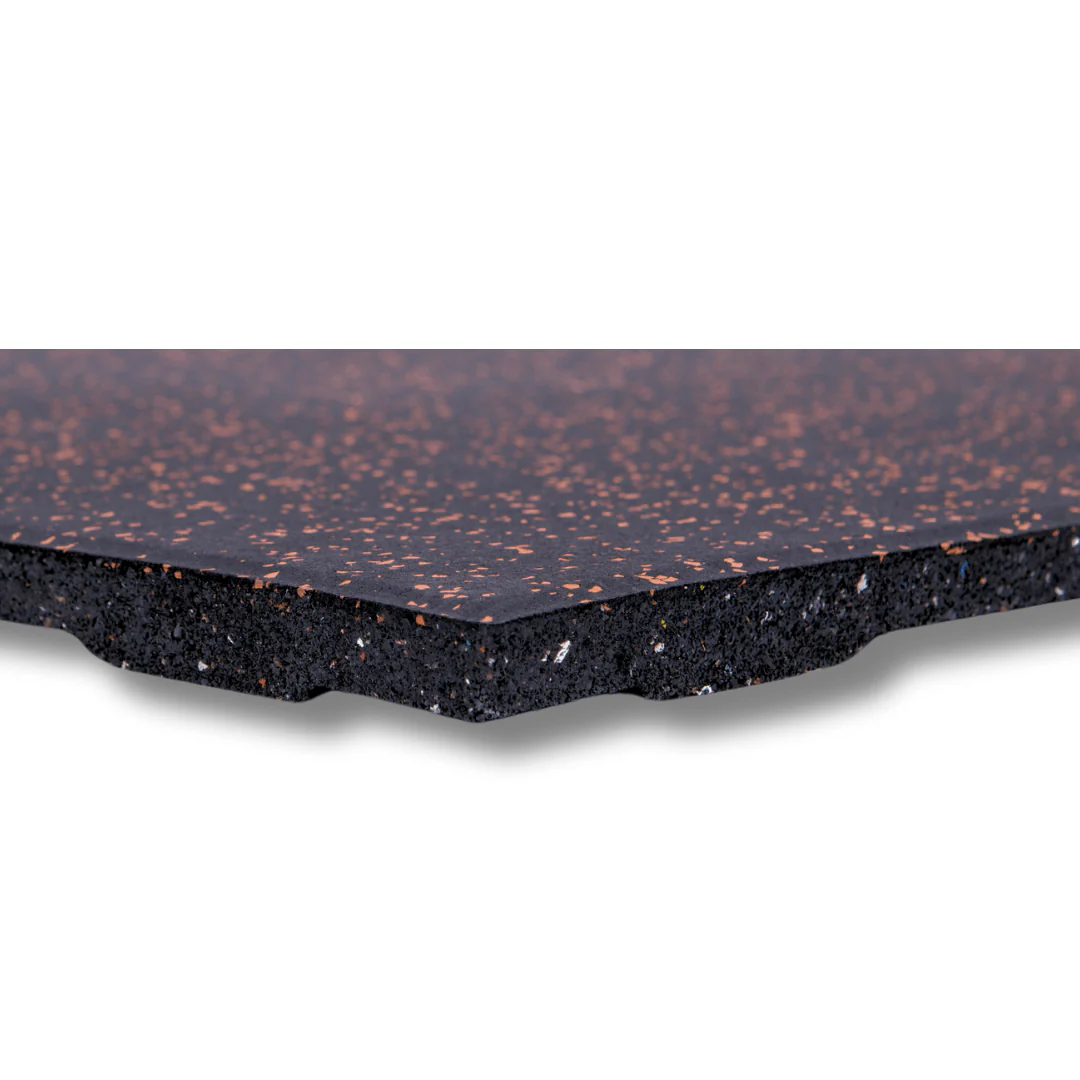

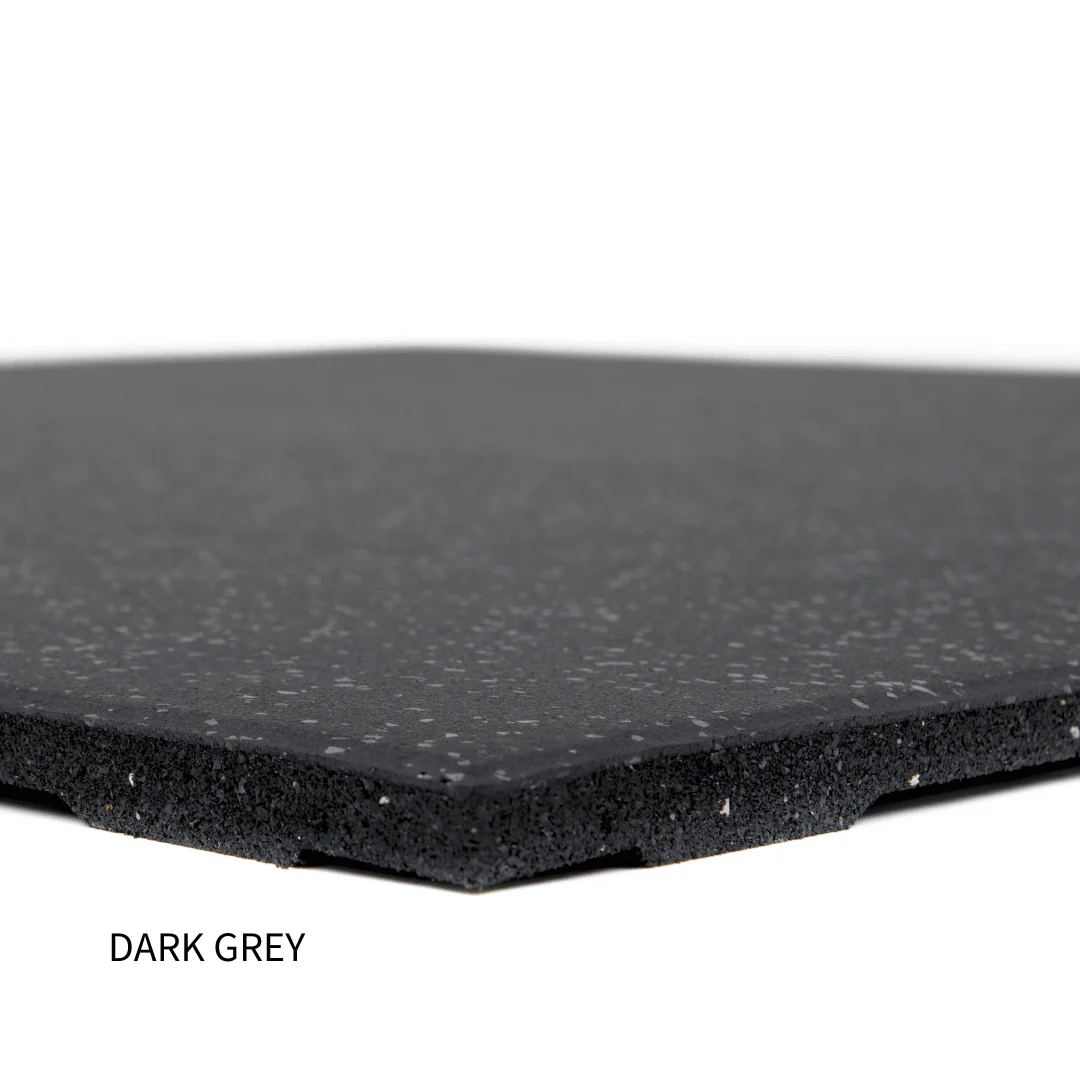

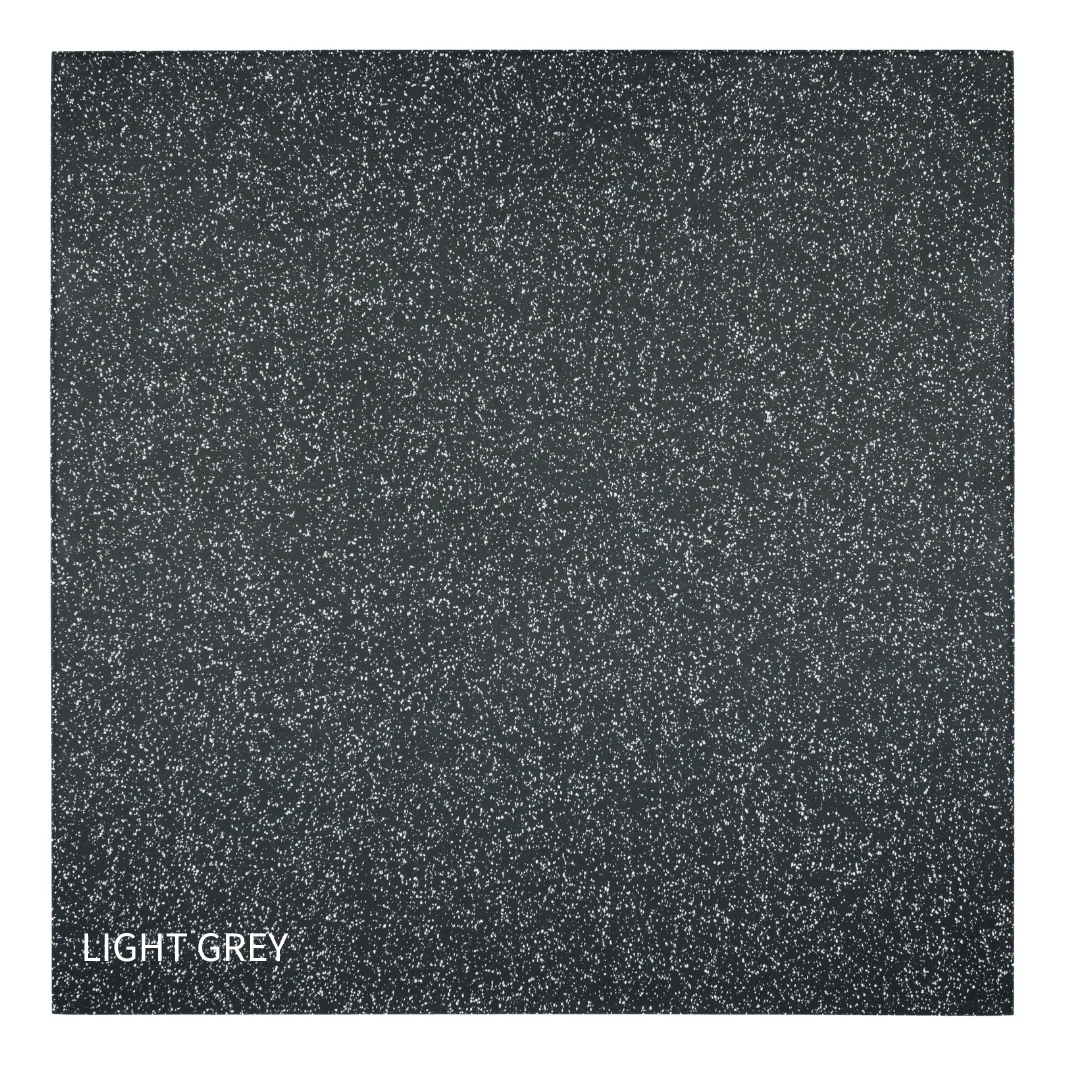

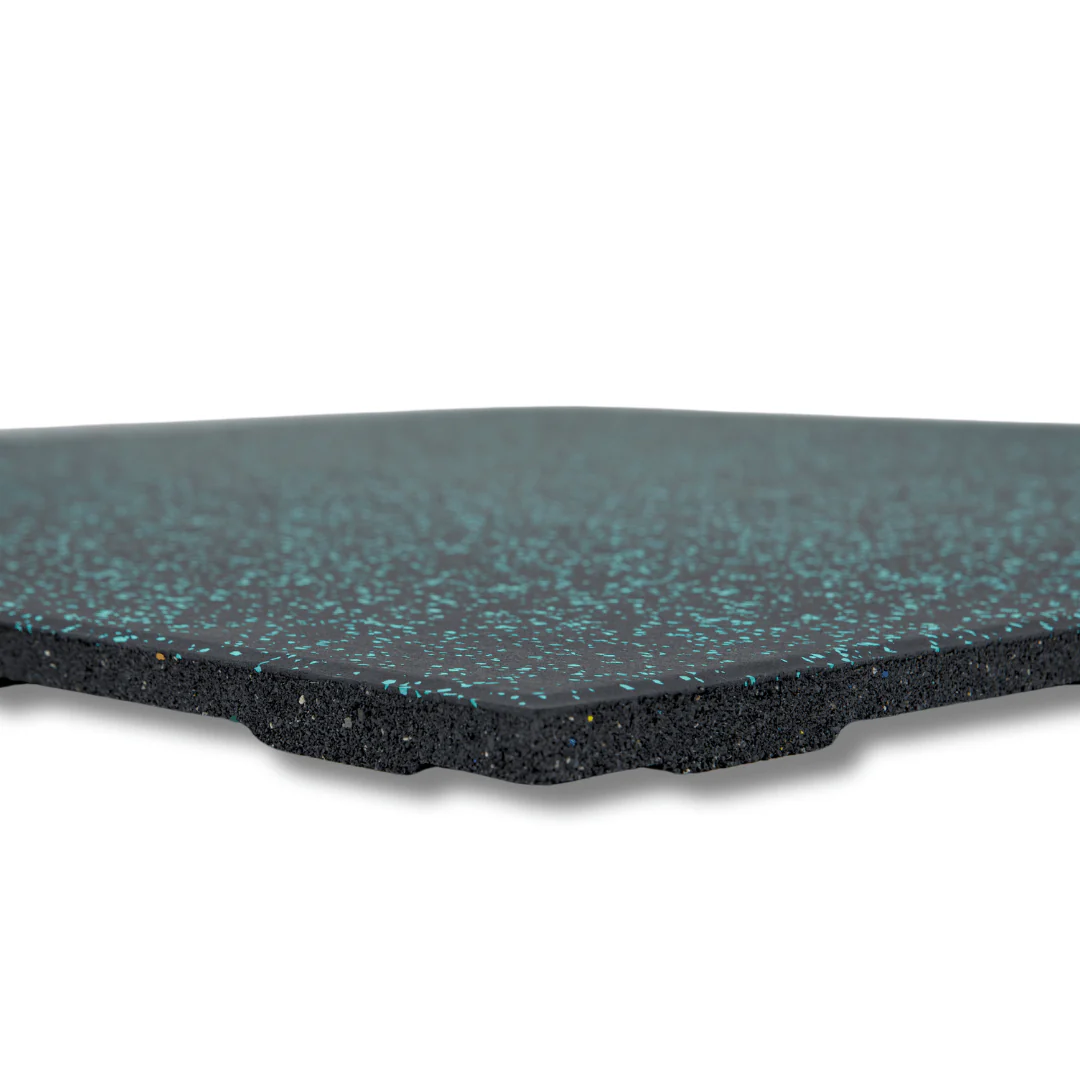

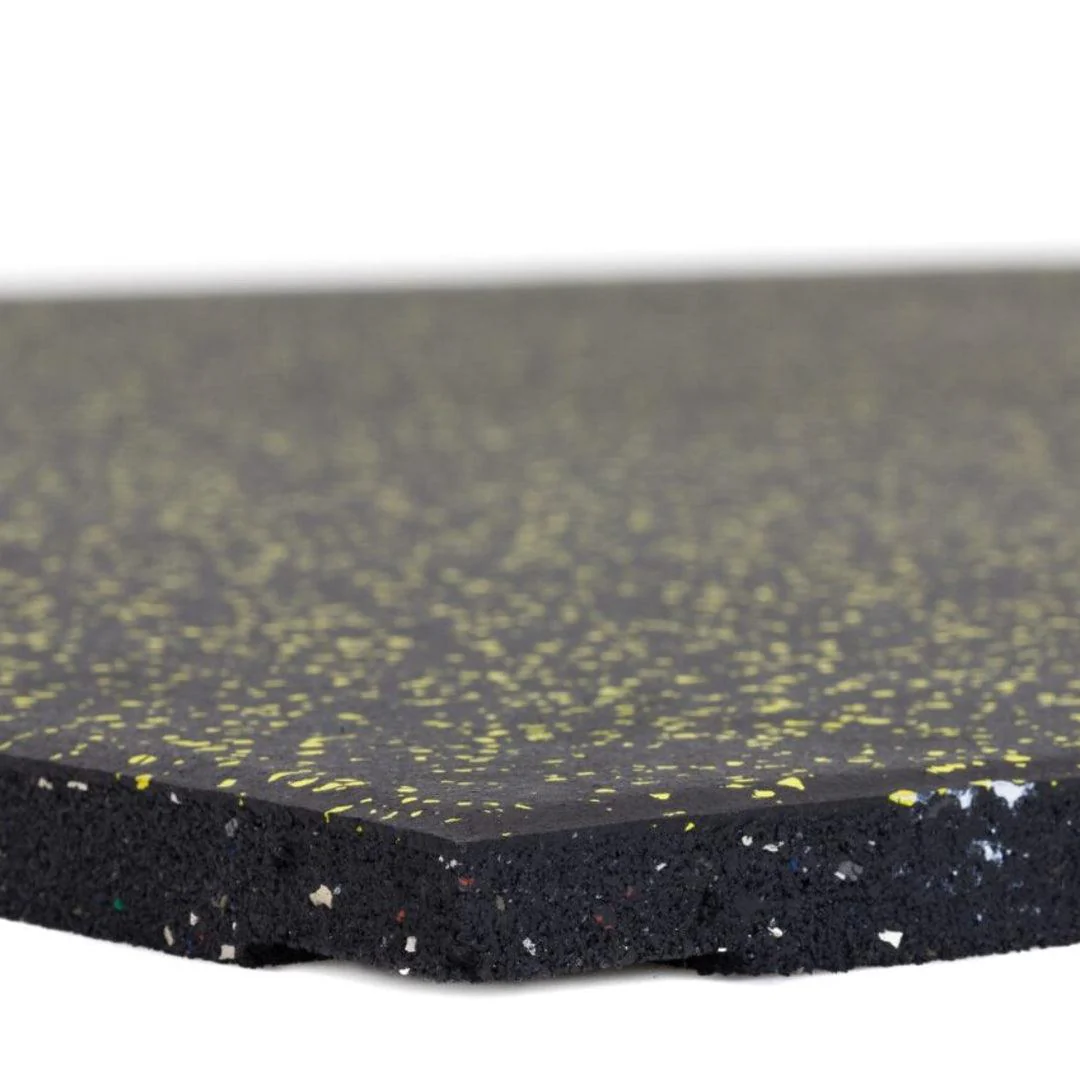

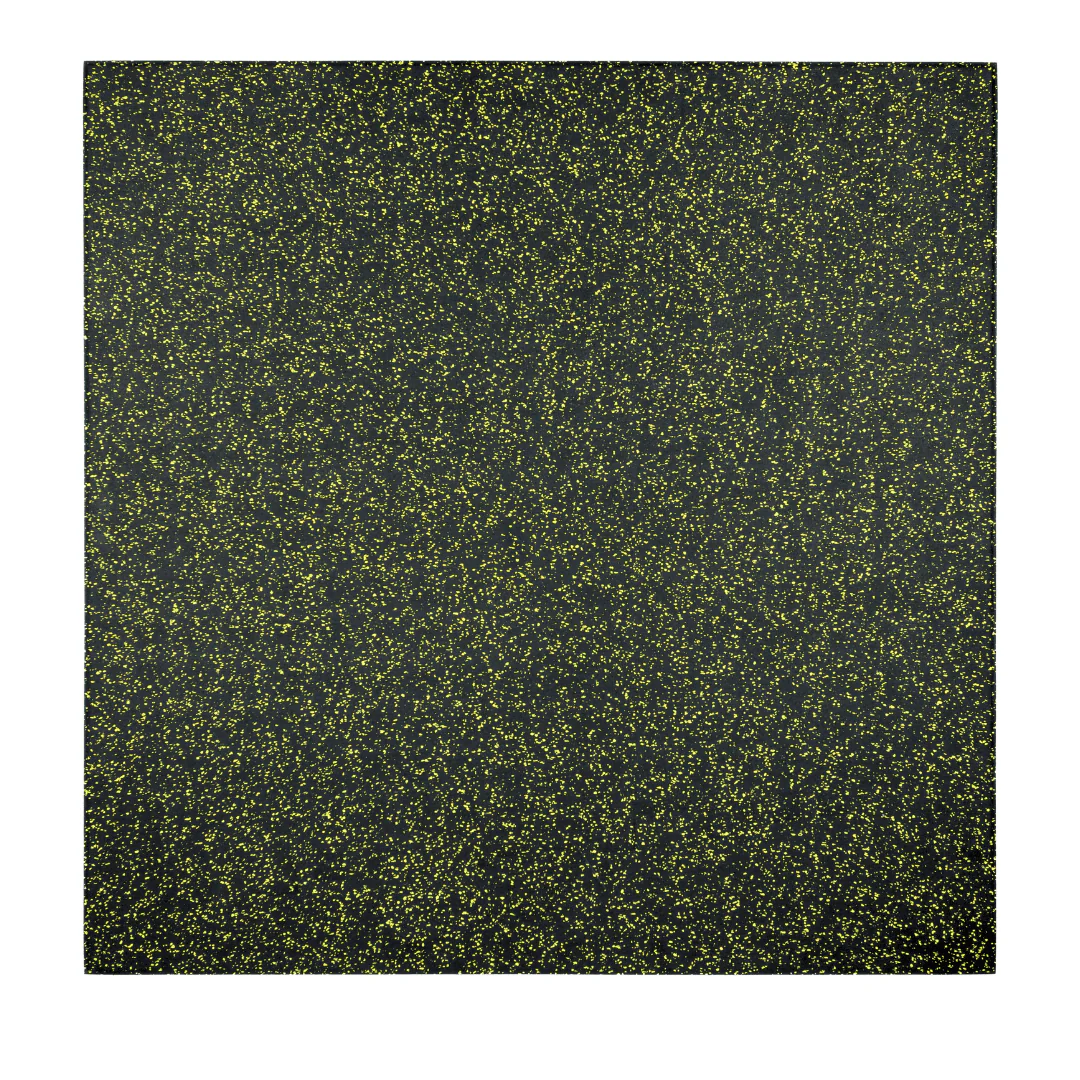

The 20mm Konnecta Fleckz is available in 5 complementary colour options adding tone, texture and character to any modern studio.

Please note these tiles are not a stock item.  Lead time is approx 7-10 working days

Matching edge ramps/corners are available in the following colour options.

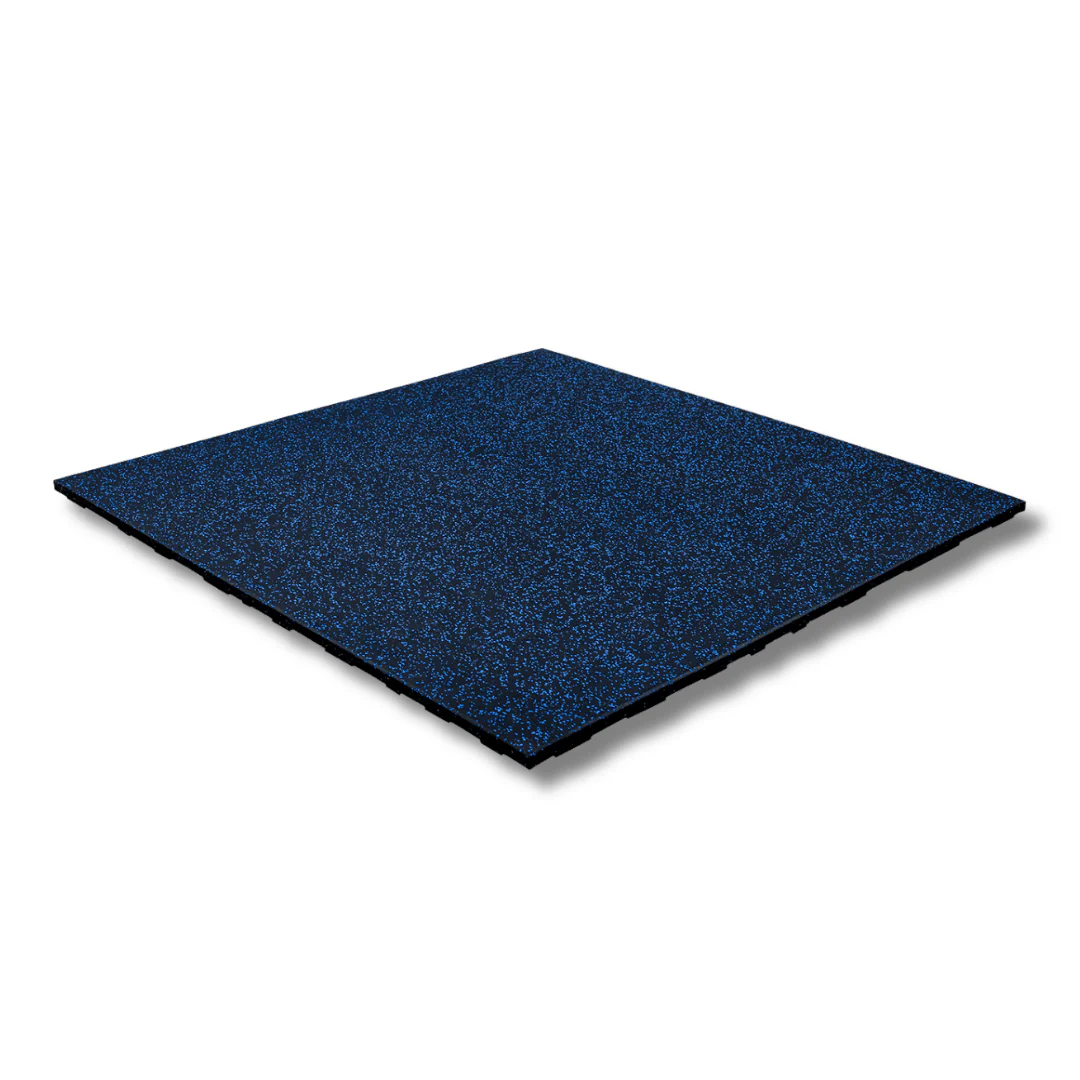

• Blue - Curved Design
• Green
• Red

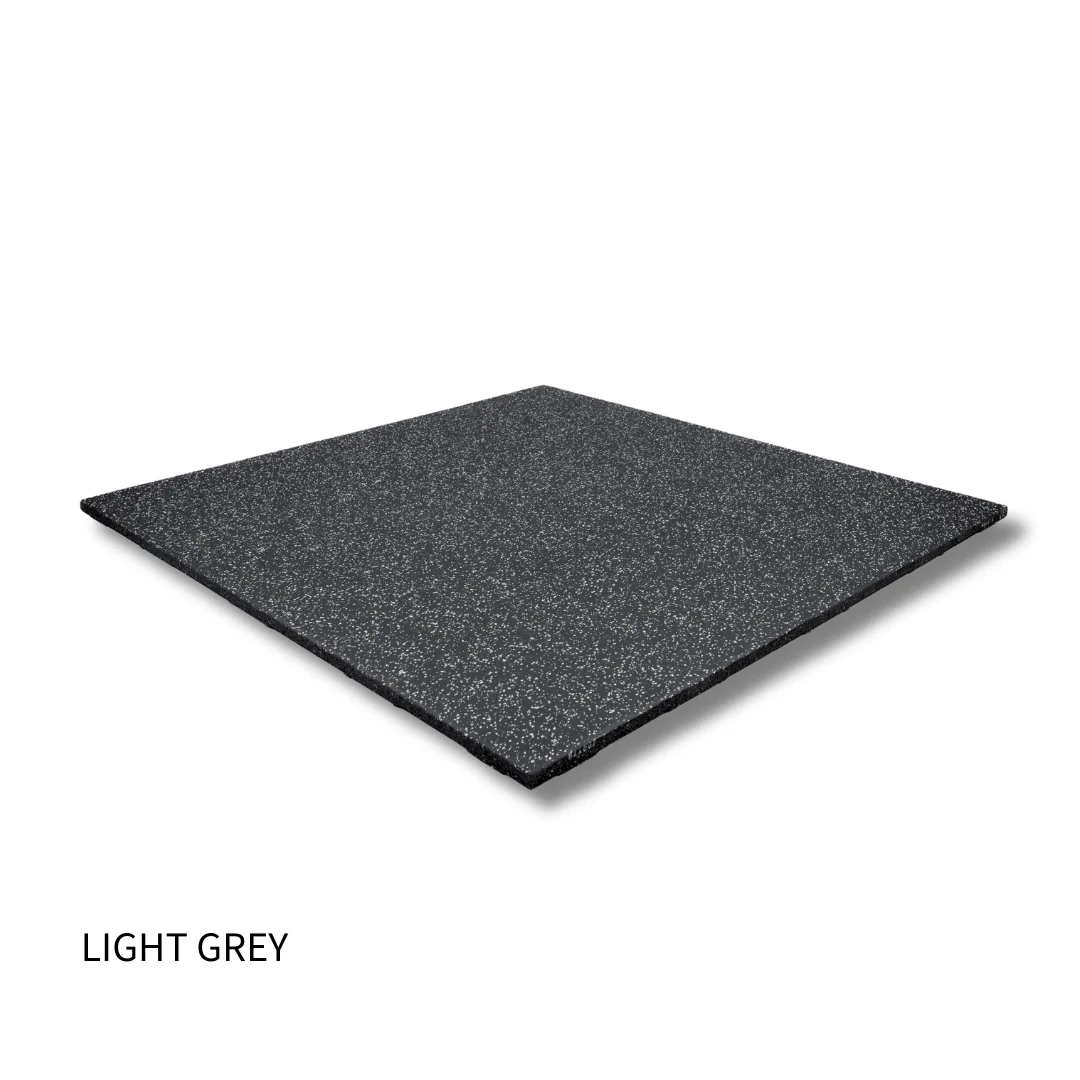

• Light Grey

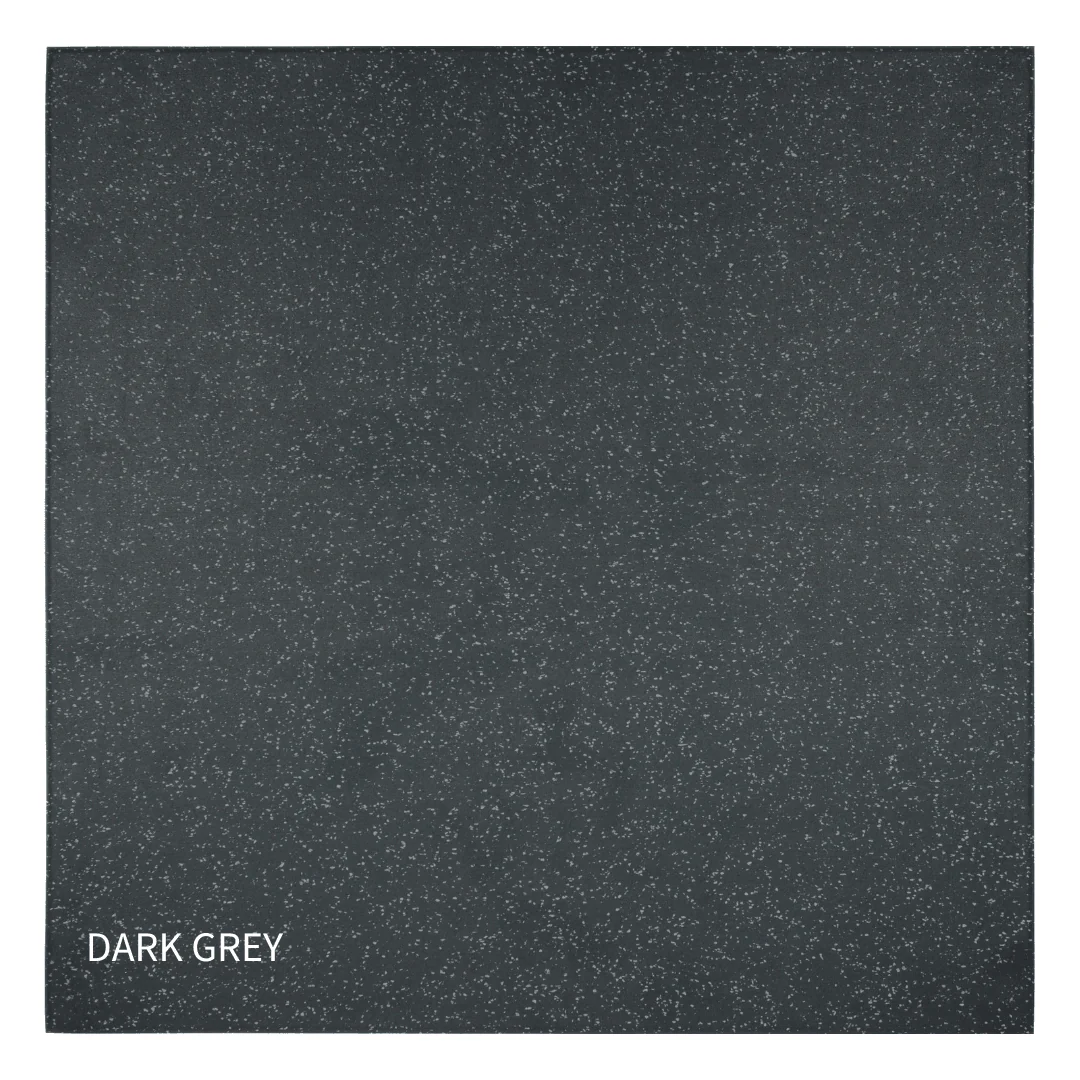

• Dark Grey - Curved Design

Access Full Specification Library

Dimensions:

Thickness: 20mm

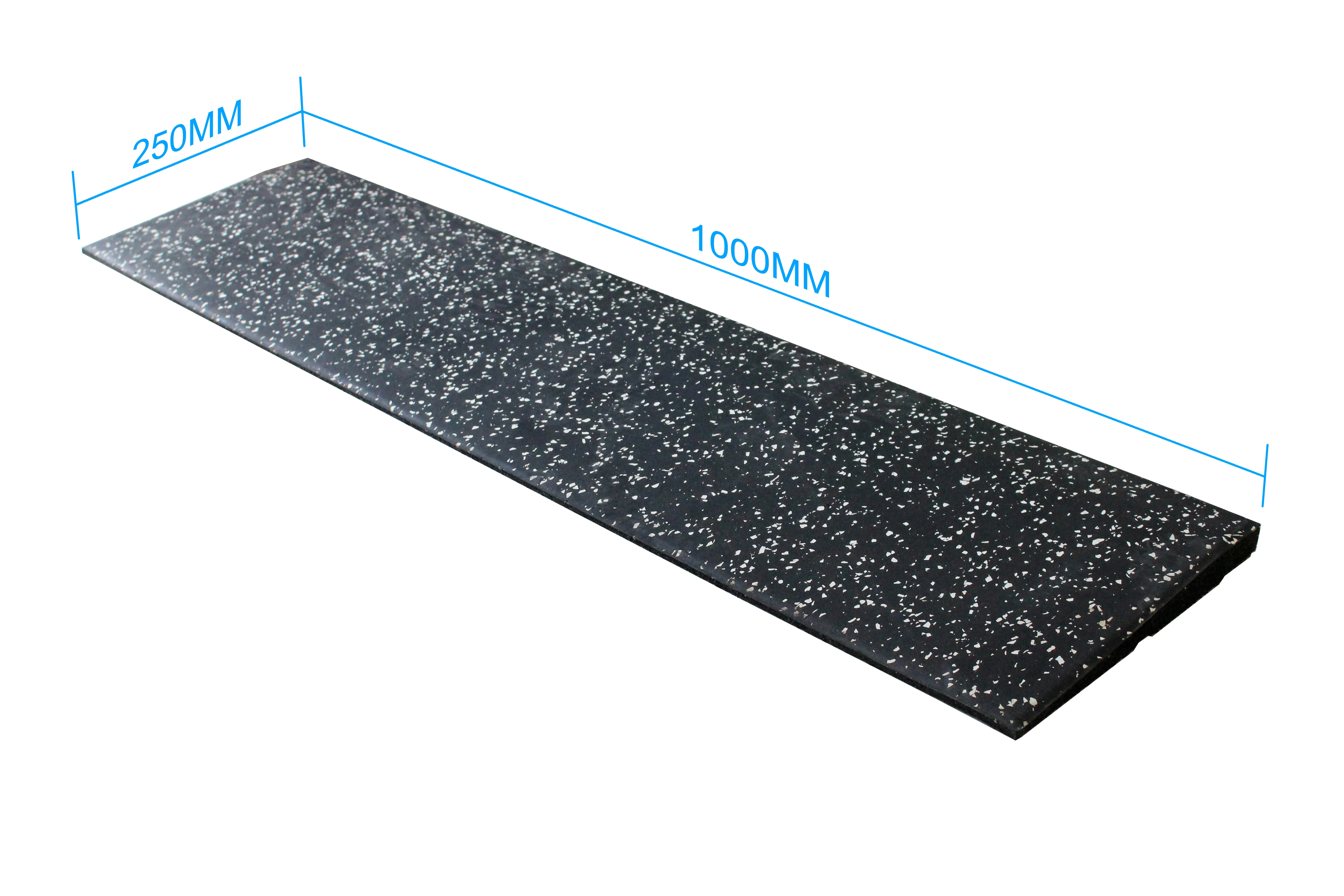

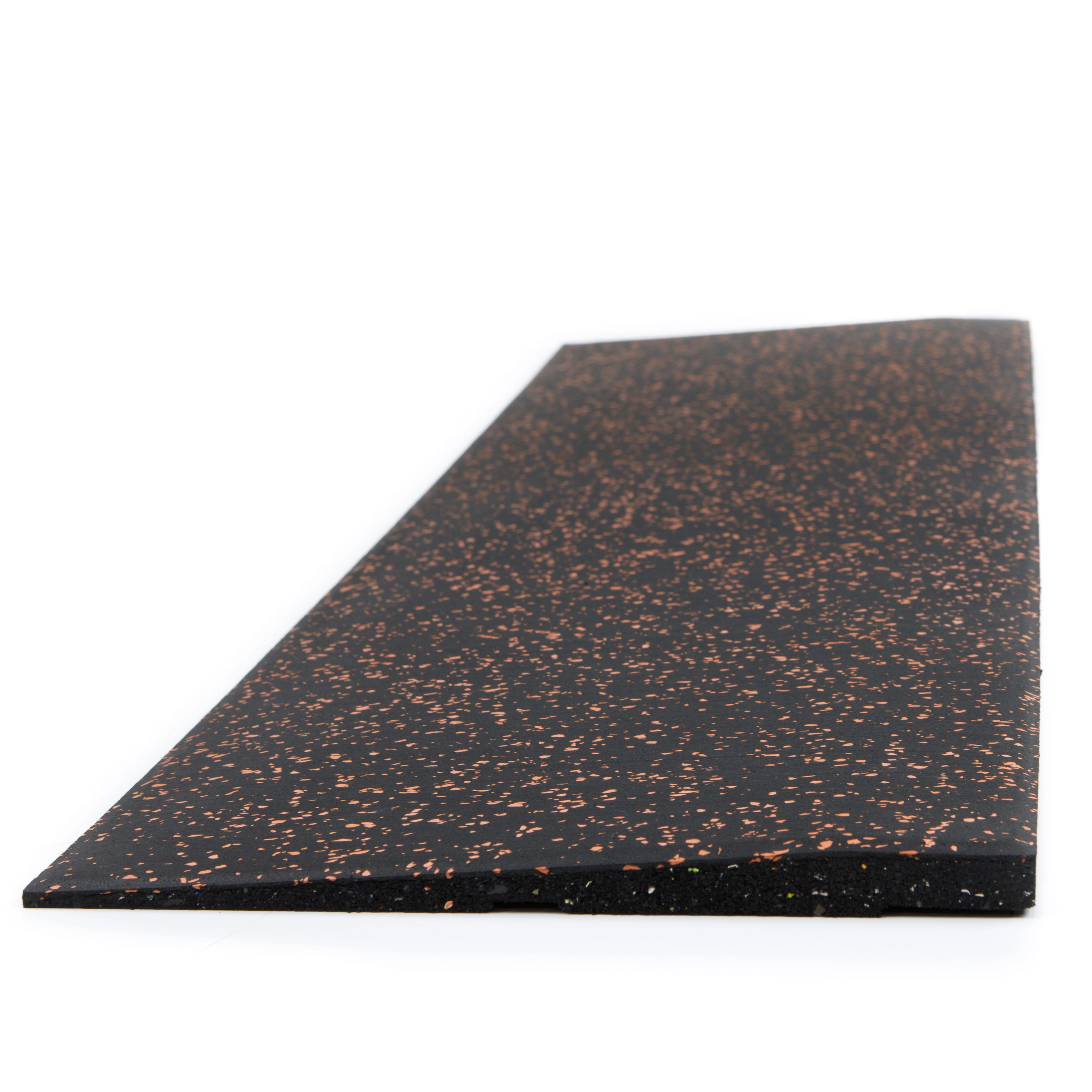

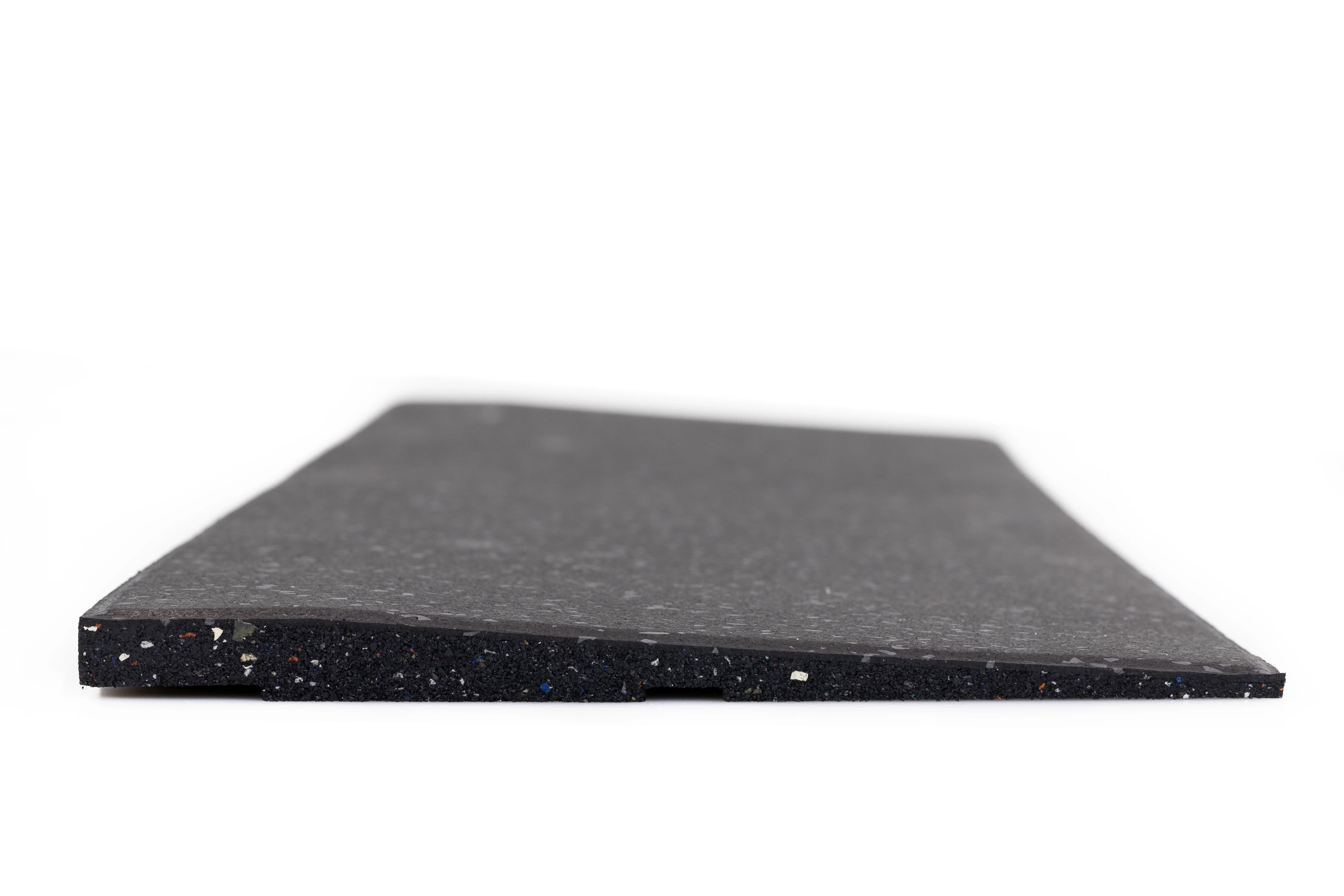

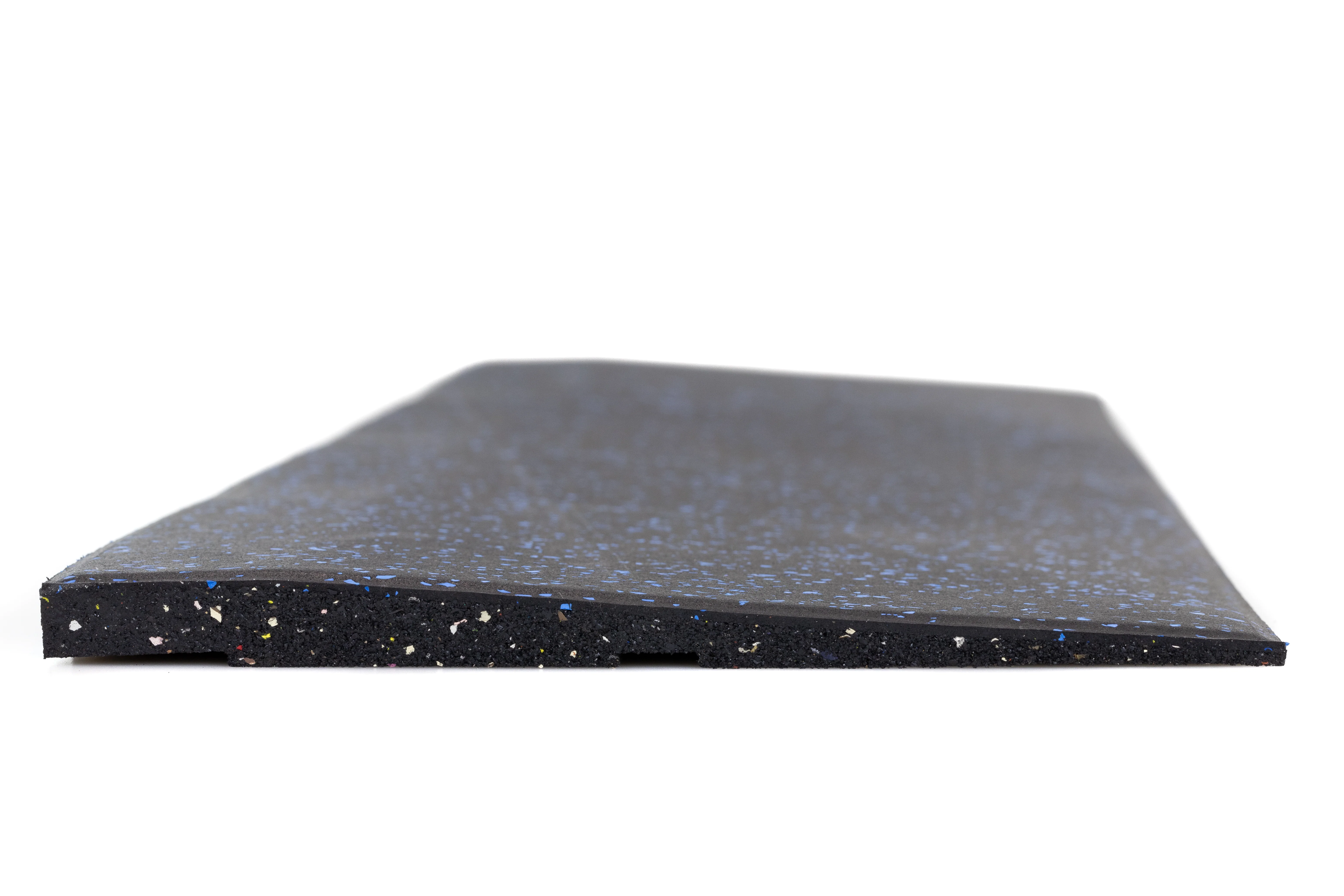

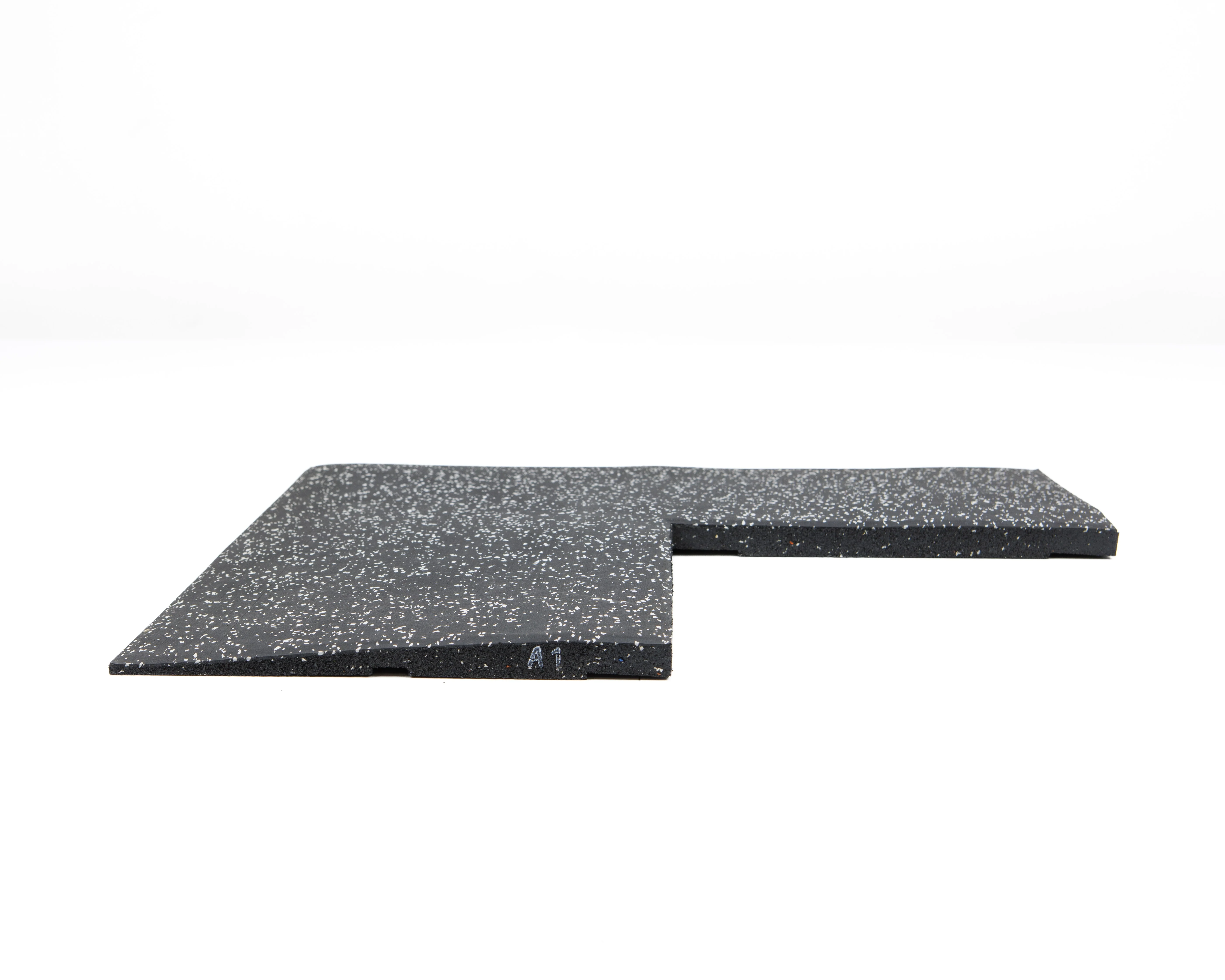

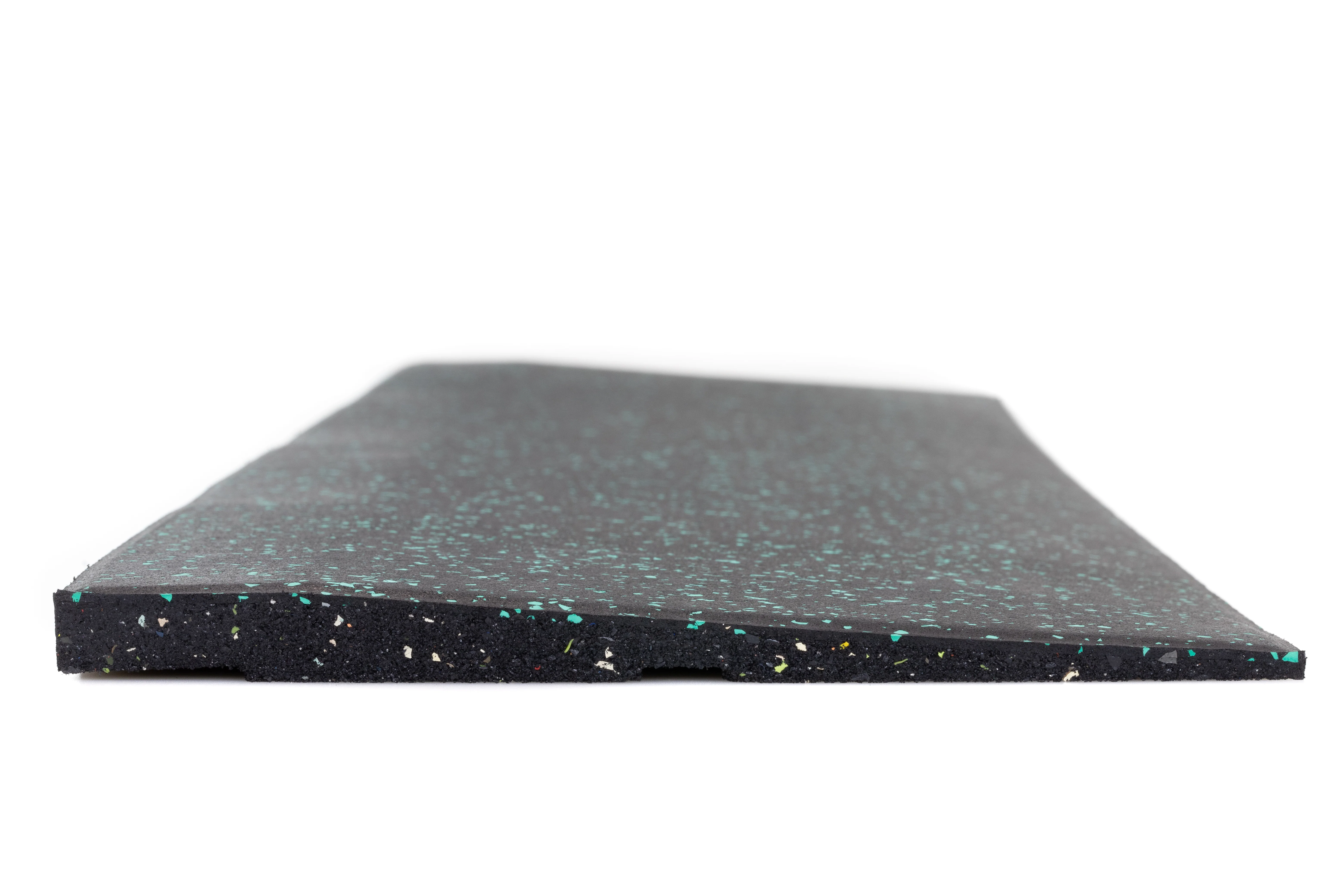

Edge Ramps - 1000mm x 250mm

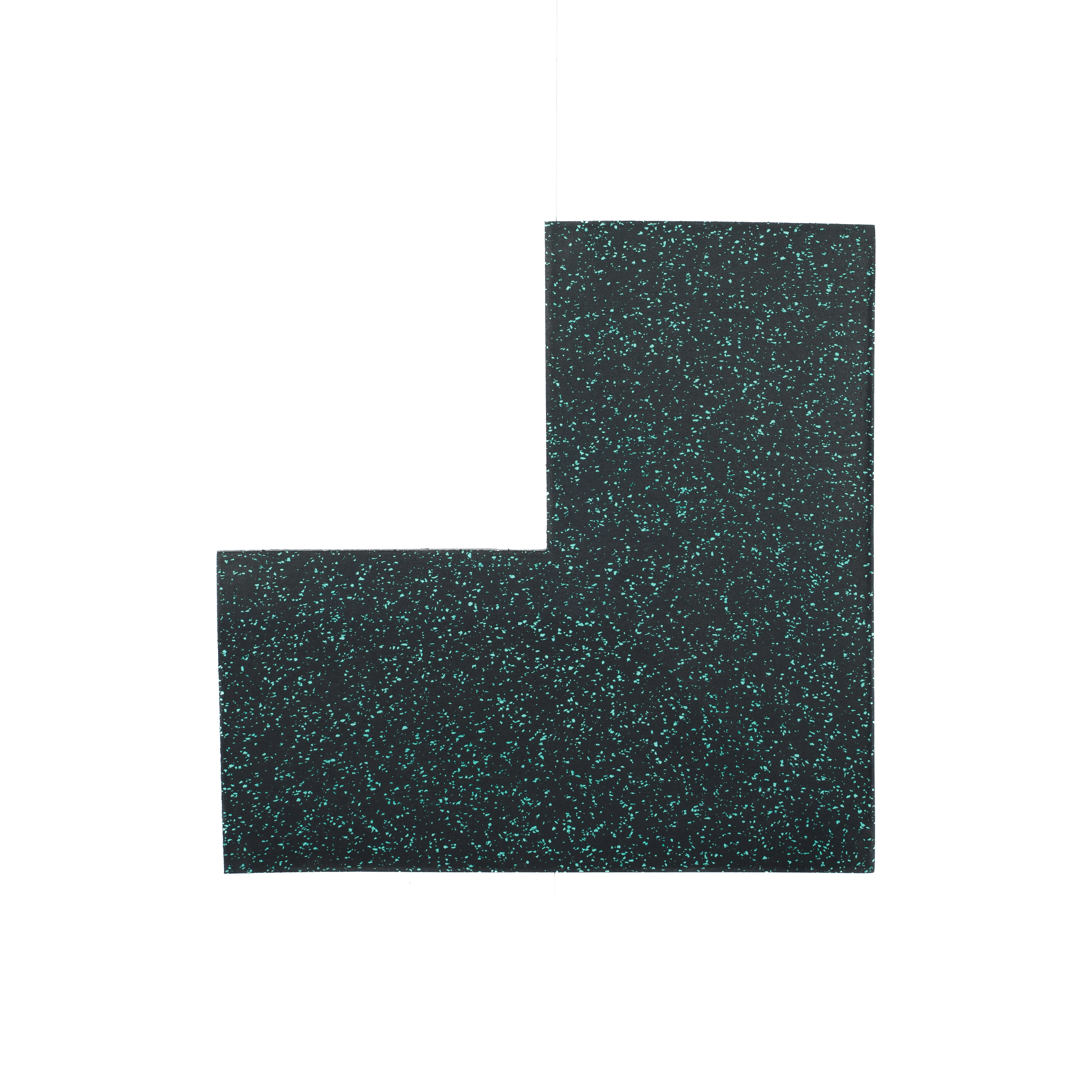

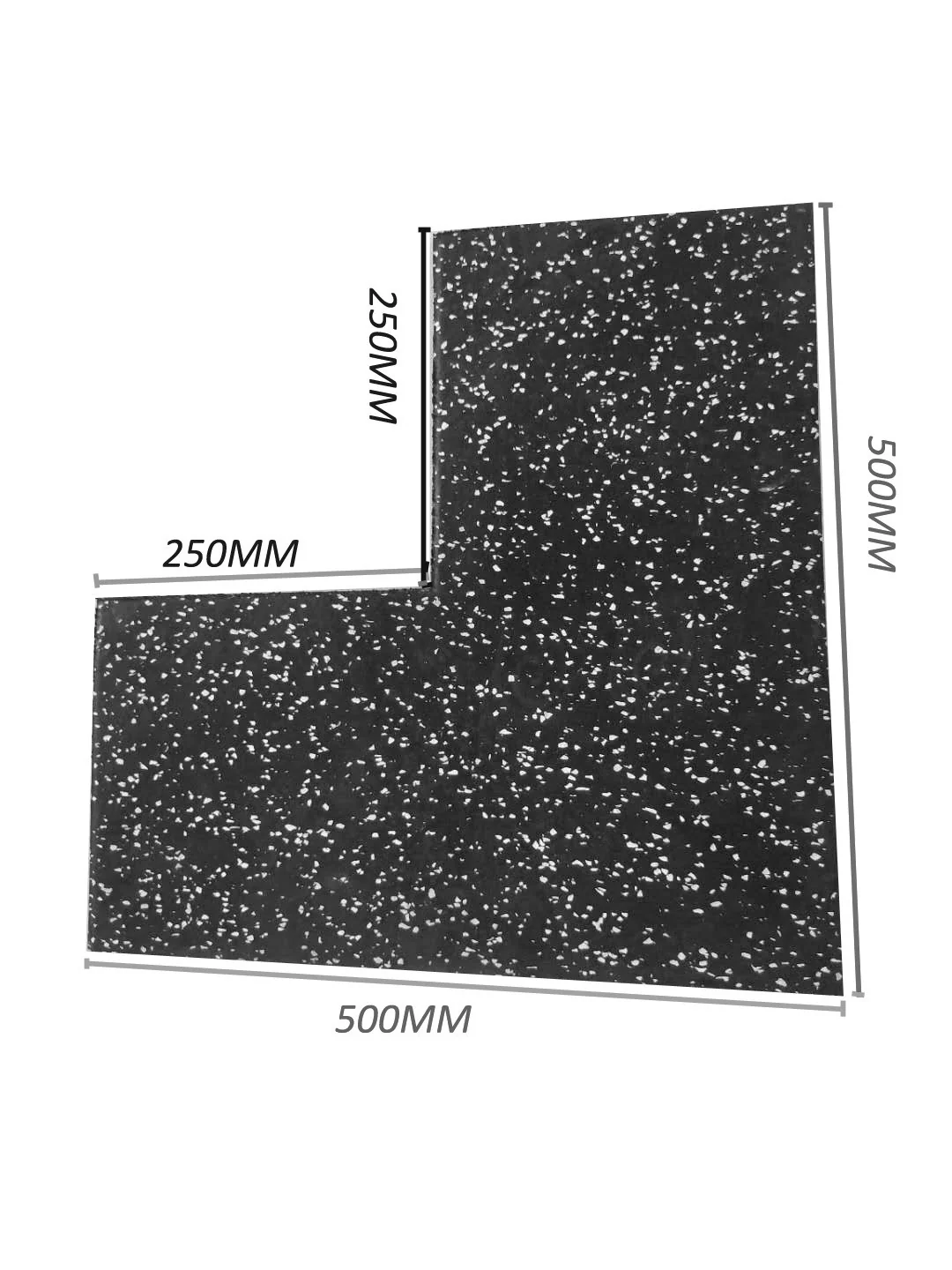

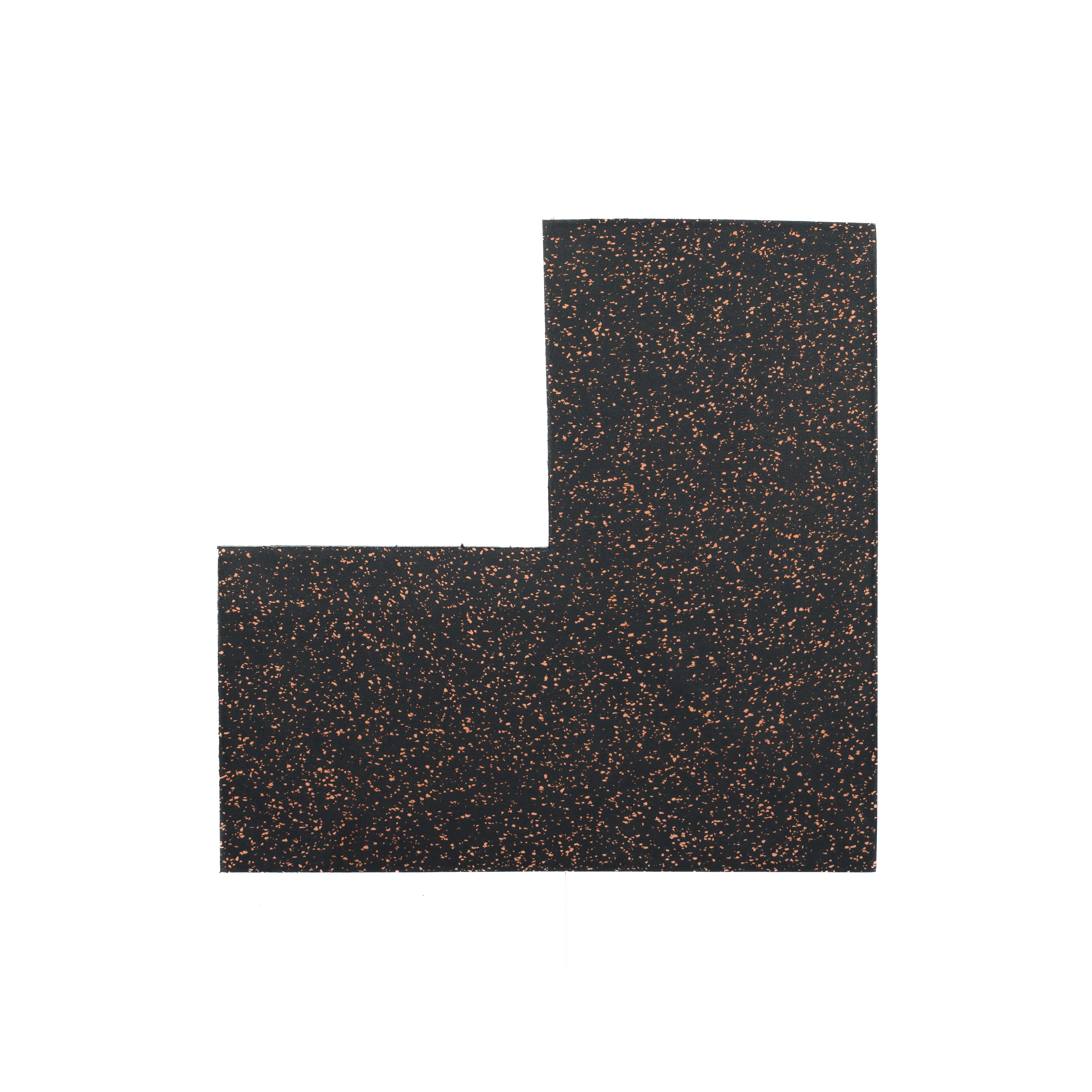

Corners - Internal Edge 250mm x 250mm / External Edge 500mm x 500mm

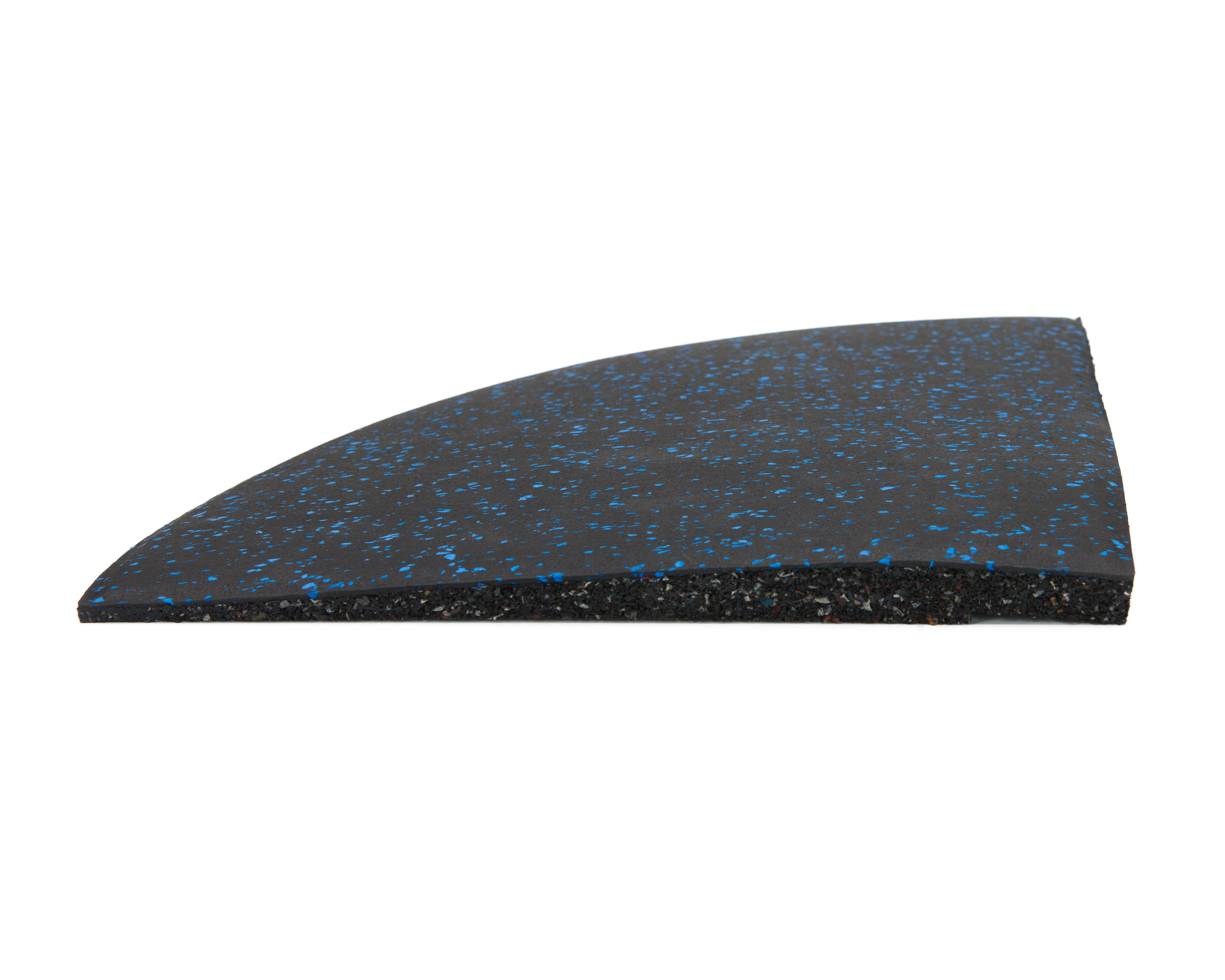

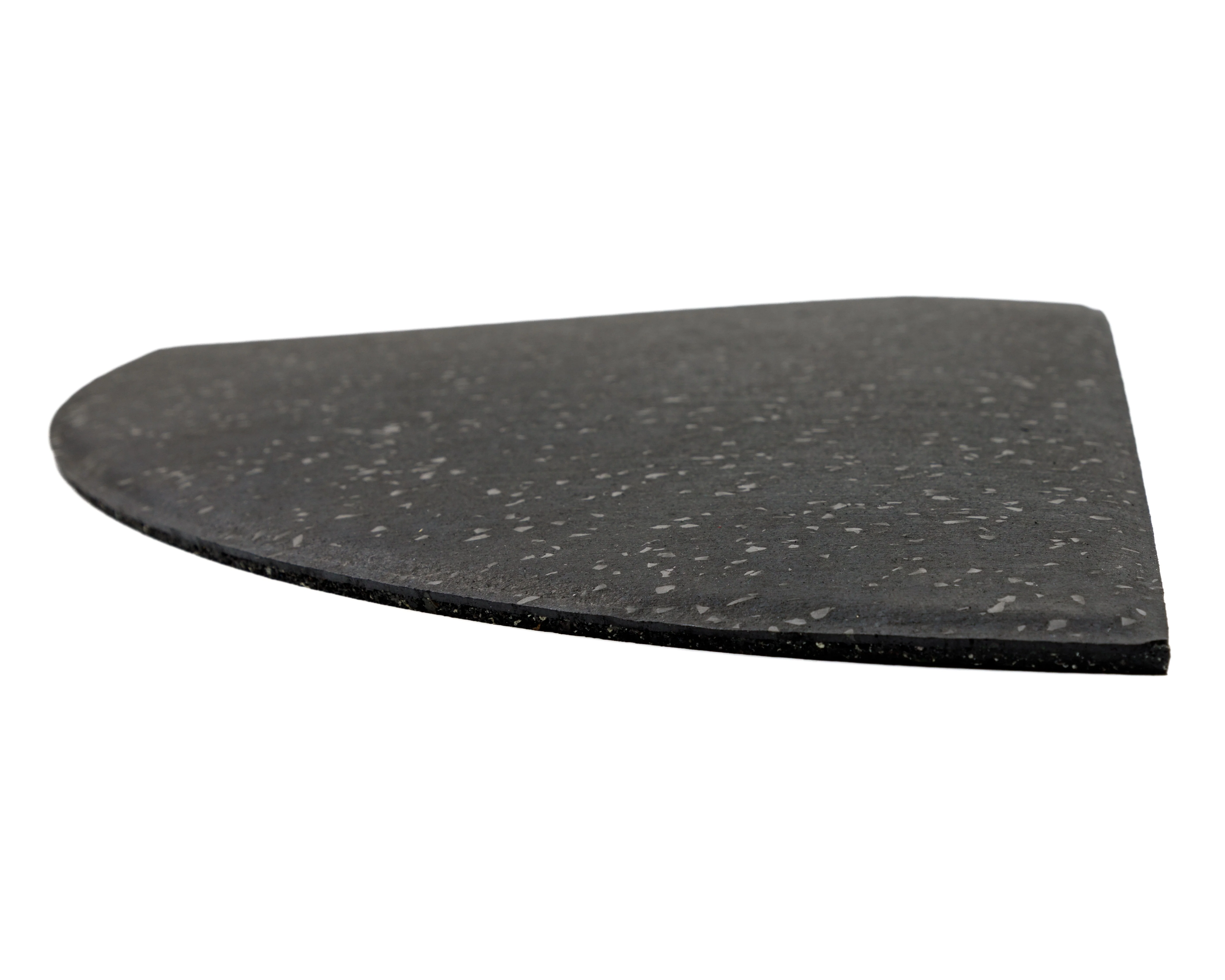

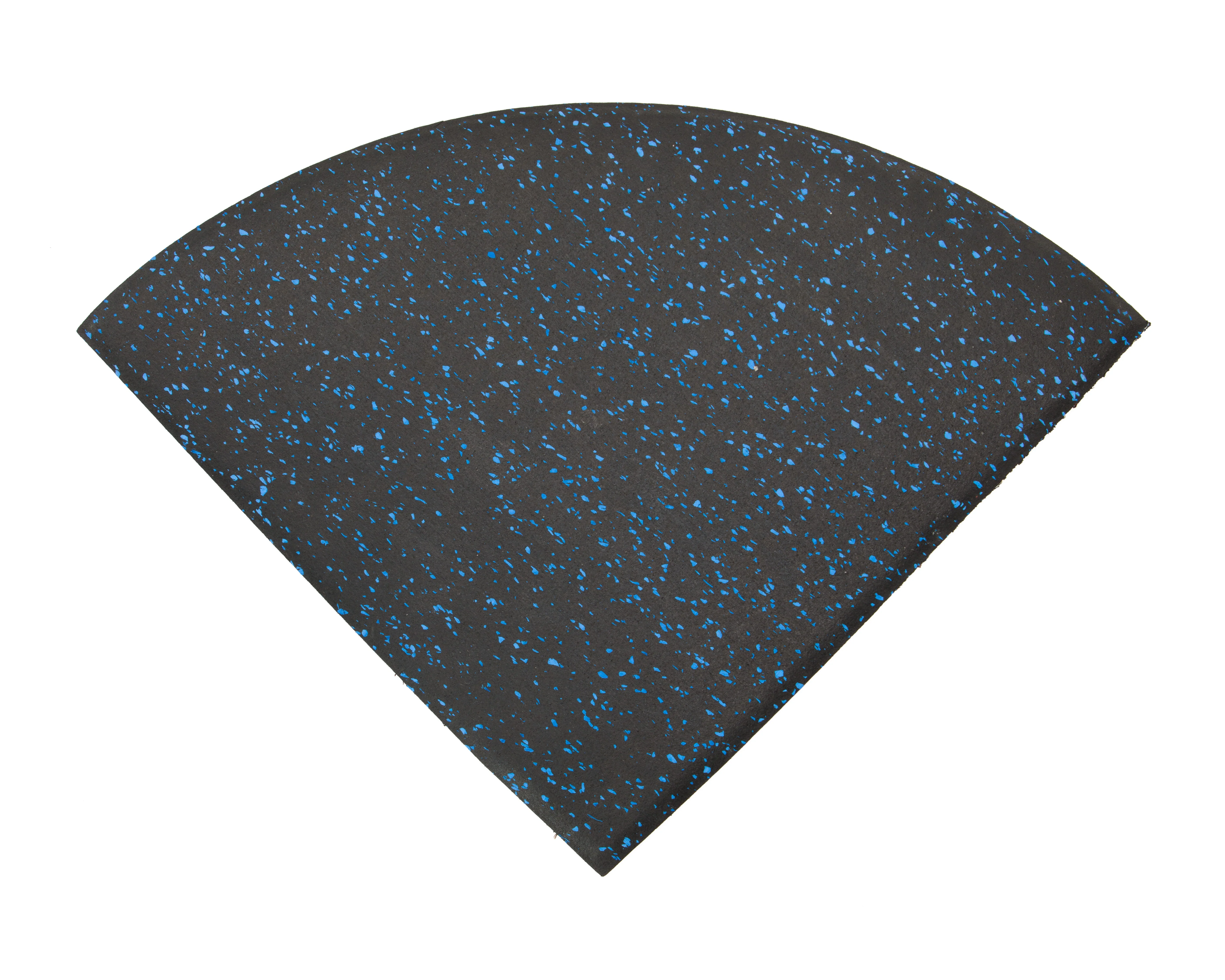

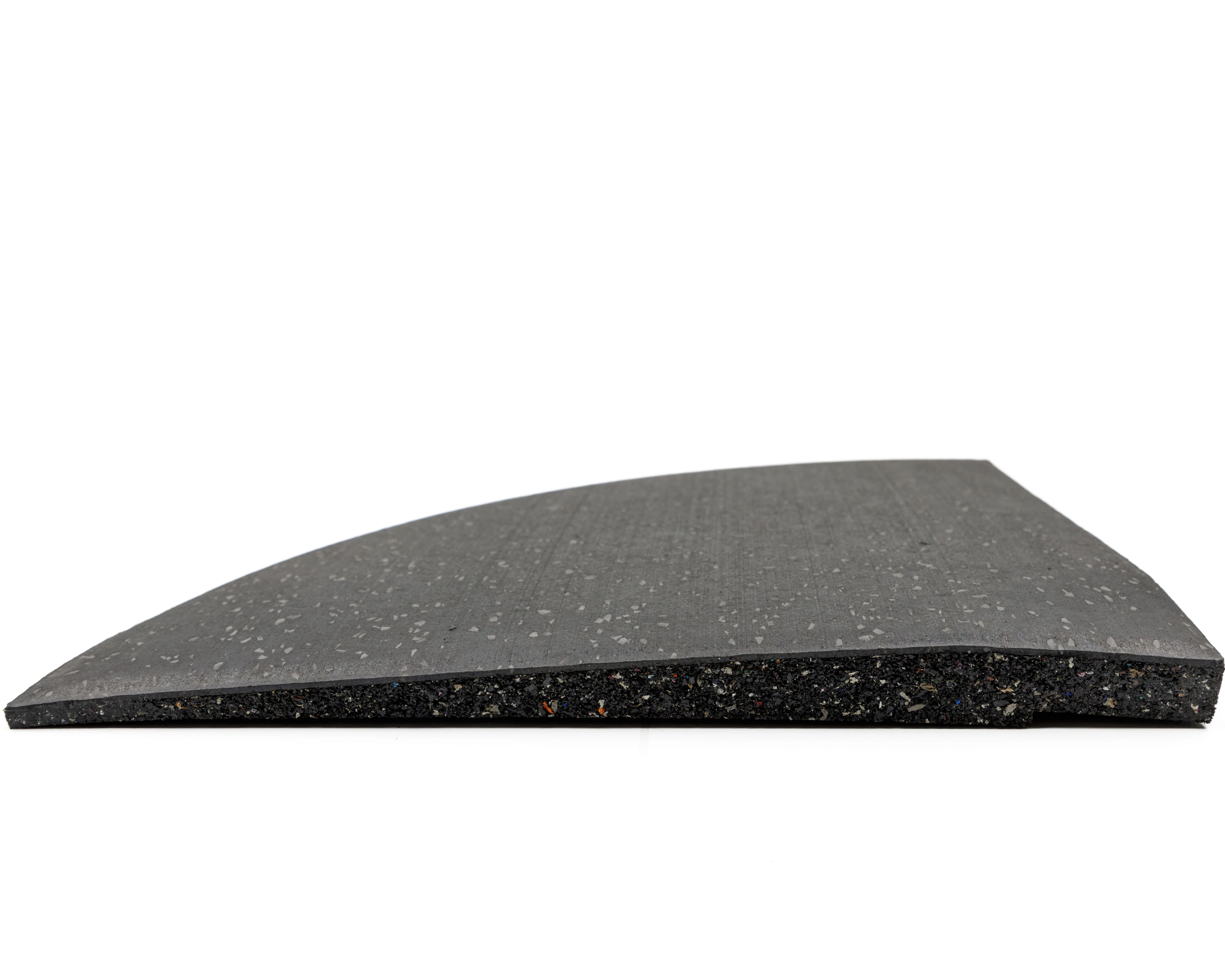

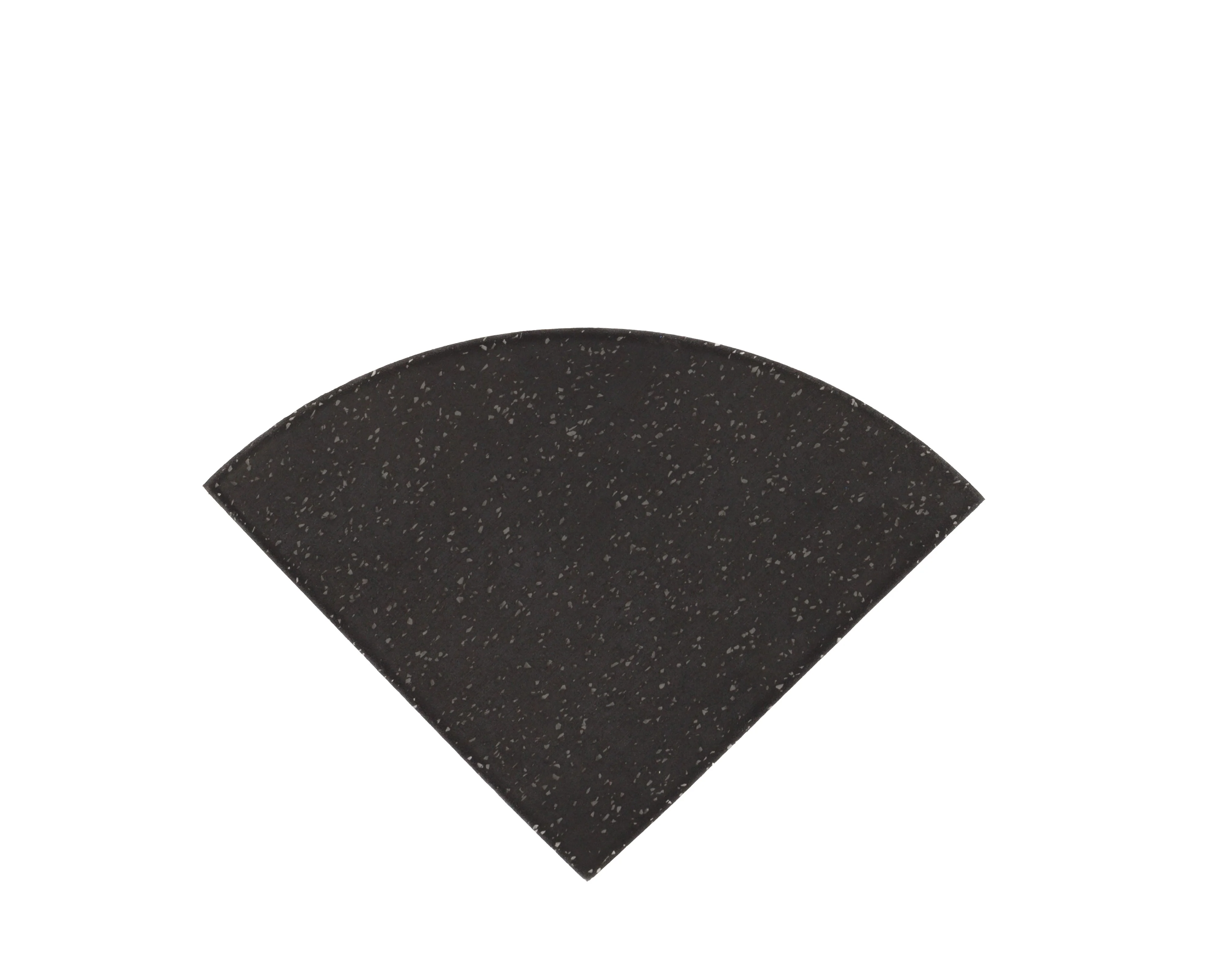

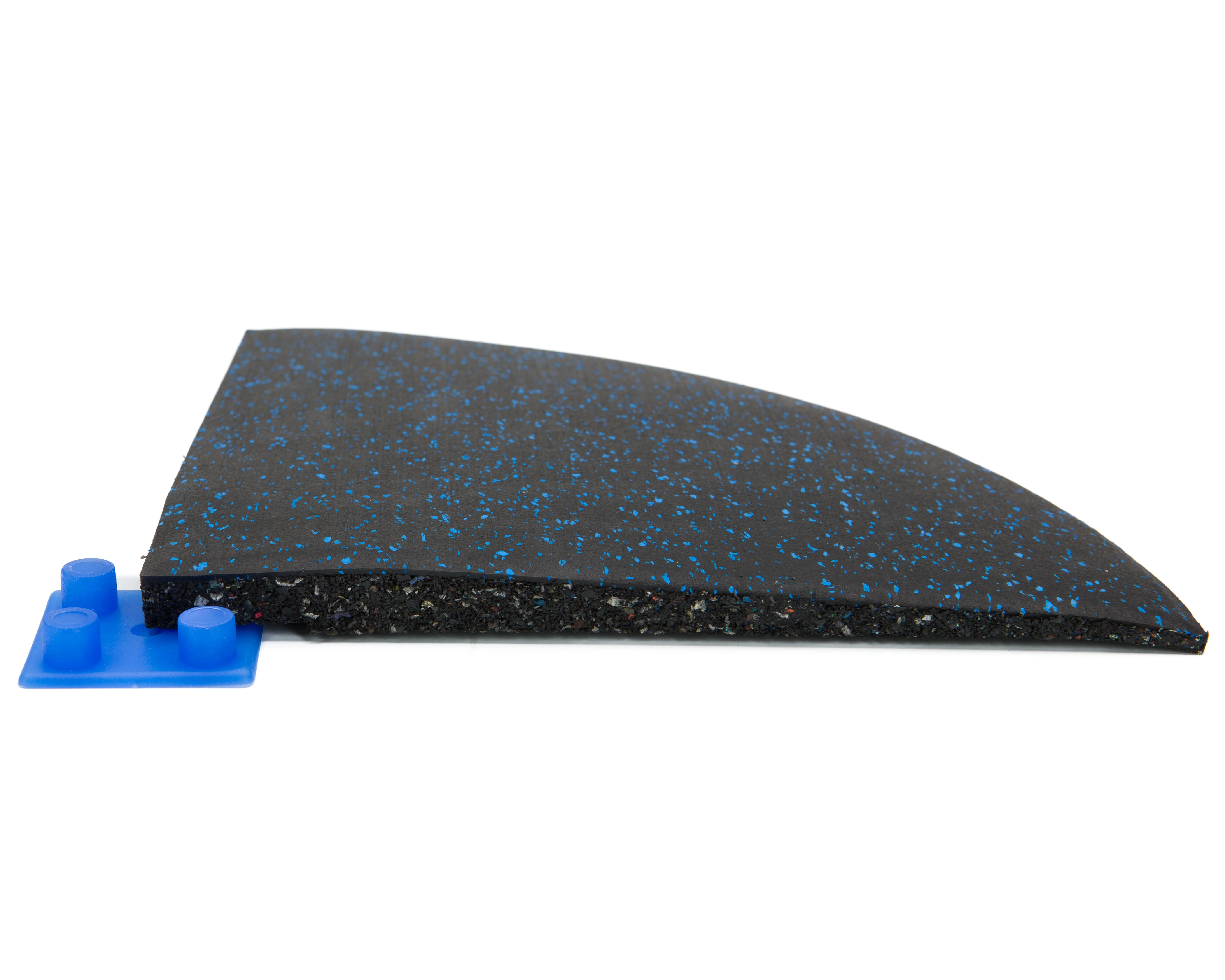

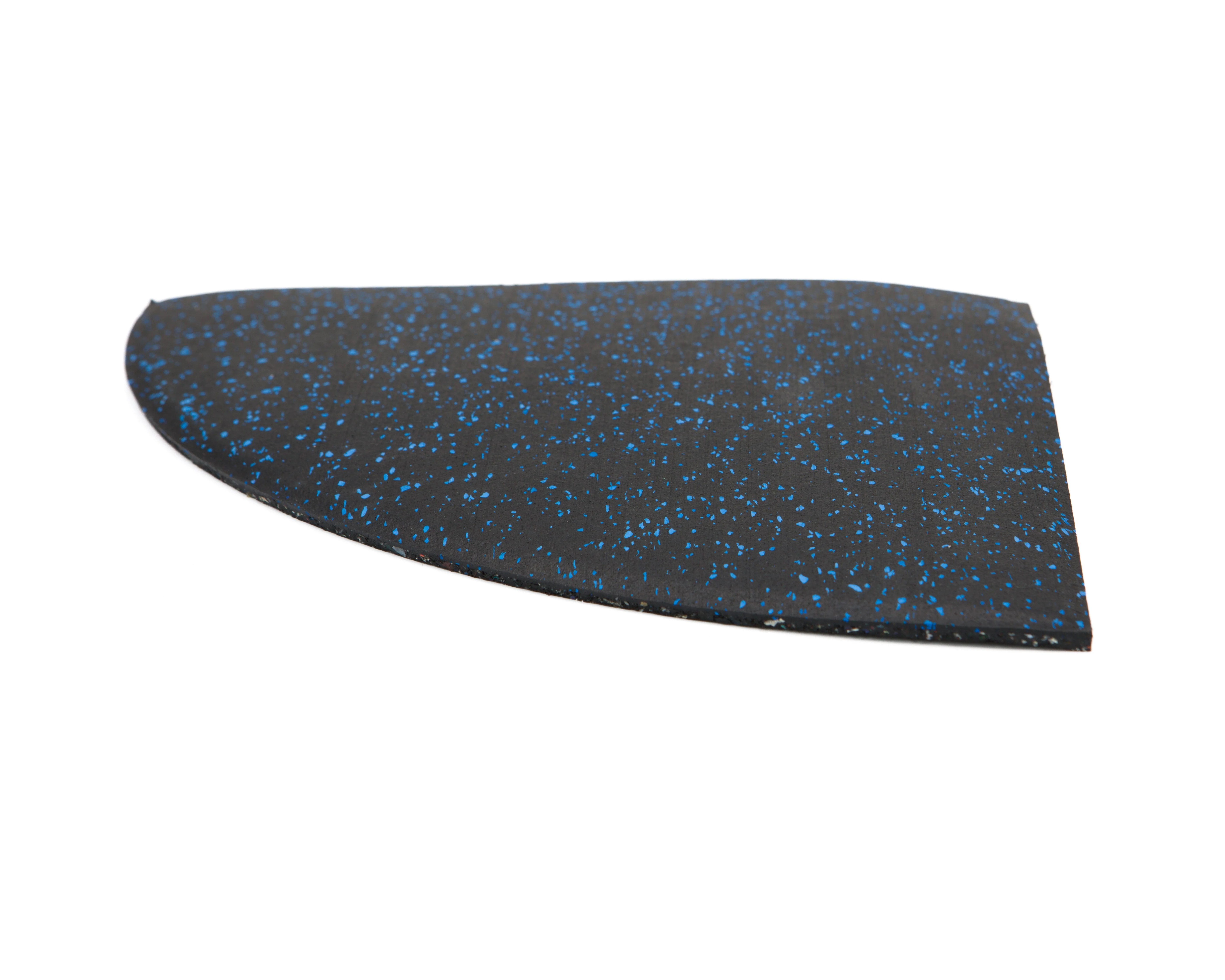

Curved Corners - 250mm x 250mm

All tiles come with a 4 year warranty against premature cracking and colour defects.

Unlike cheaper alternatives, we only use Binder (adhesive) which allows for an odourless rubber.

Applications

Cross Fit, Functional Training, Strength & Conditioning, Medium to Heavy Weights

NOTE: FREE PLASTIC CONNECTOR PIECES COME WITH TILES

Installation

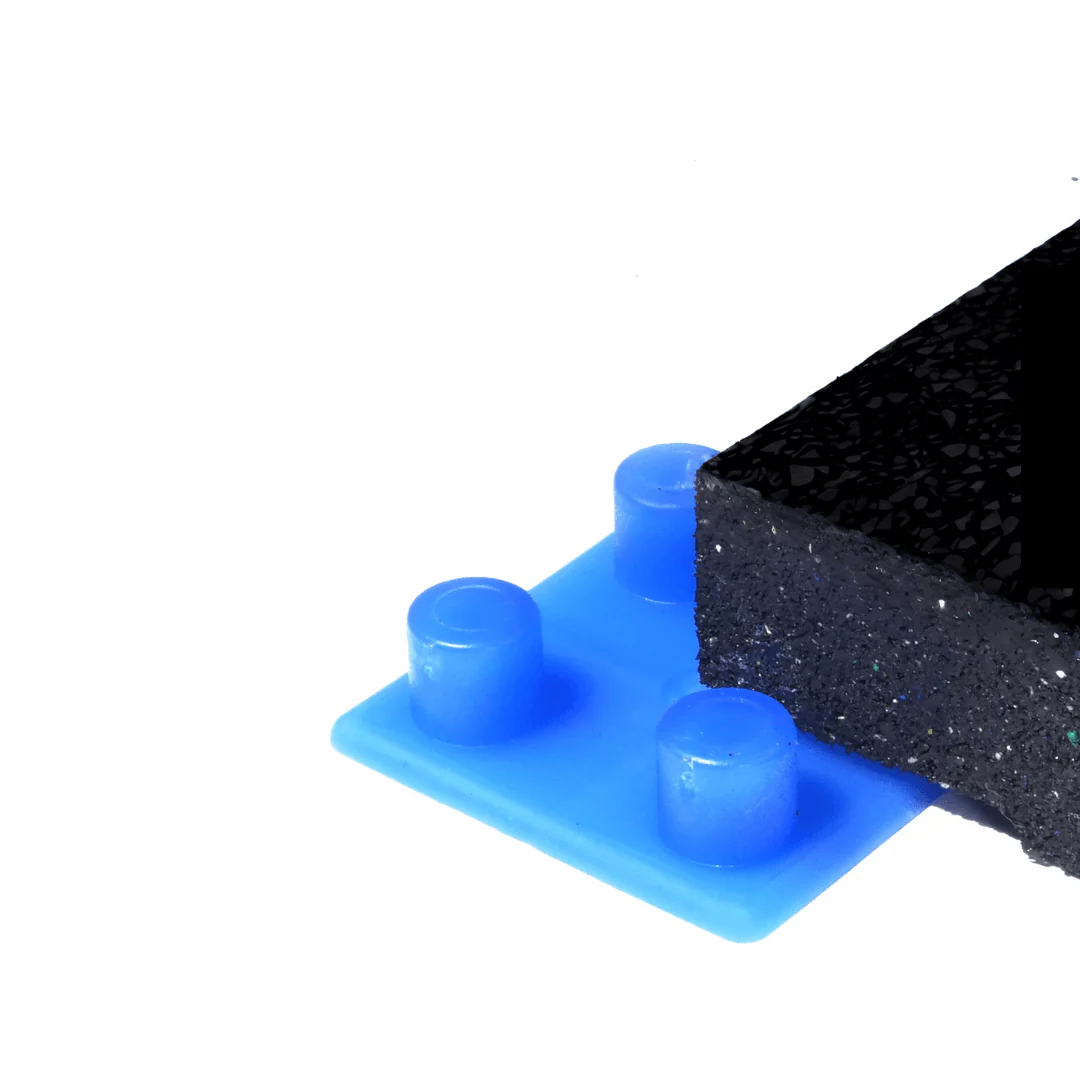

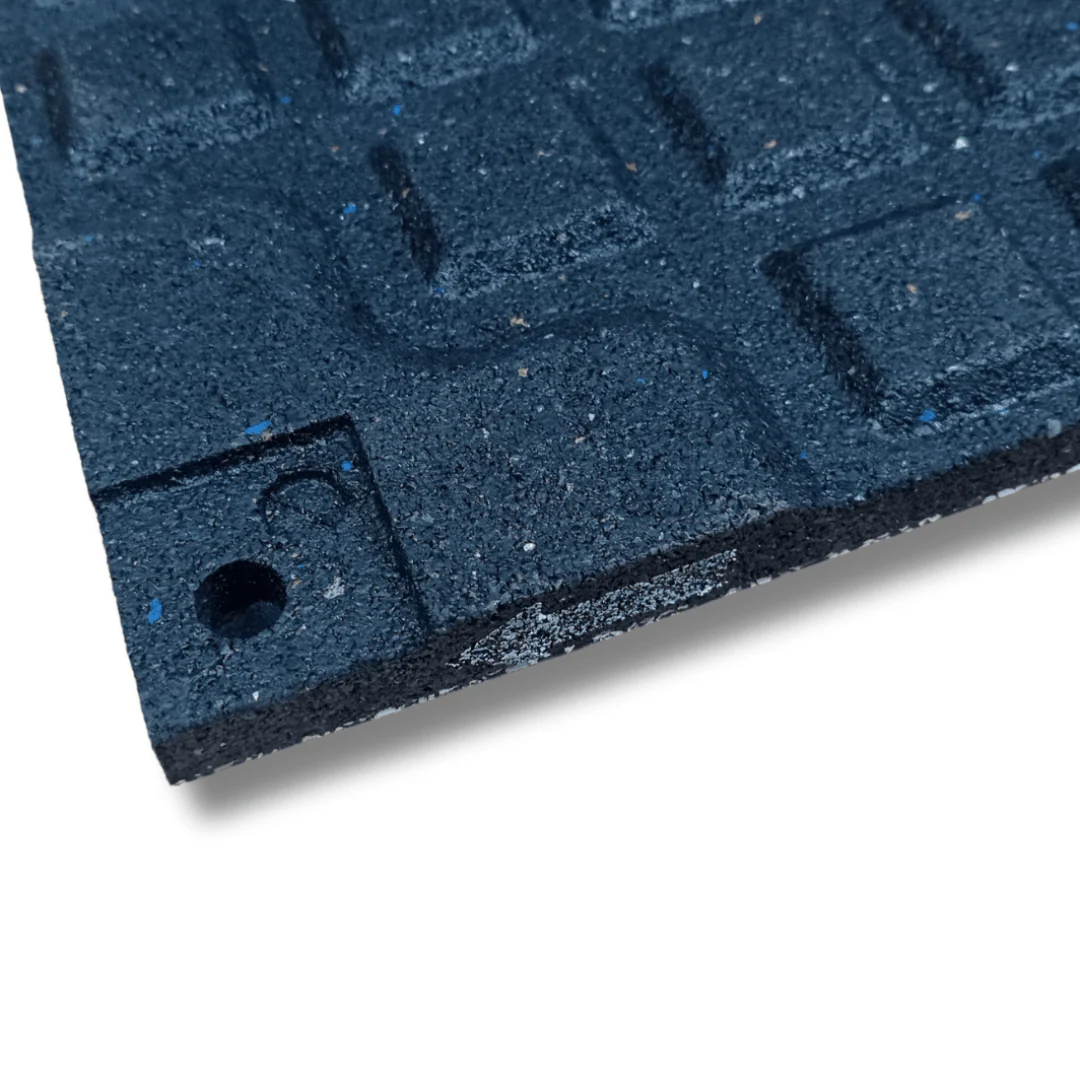

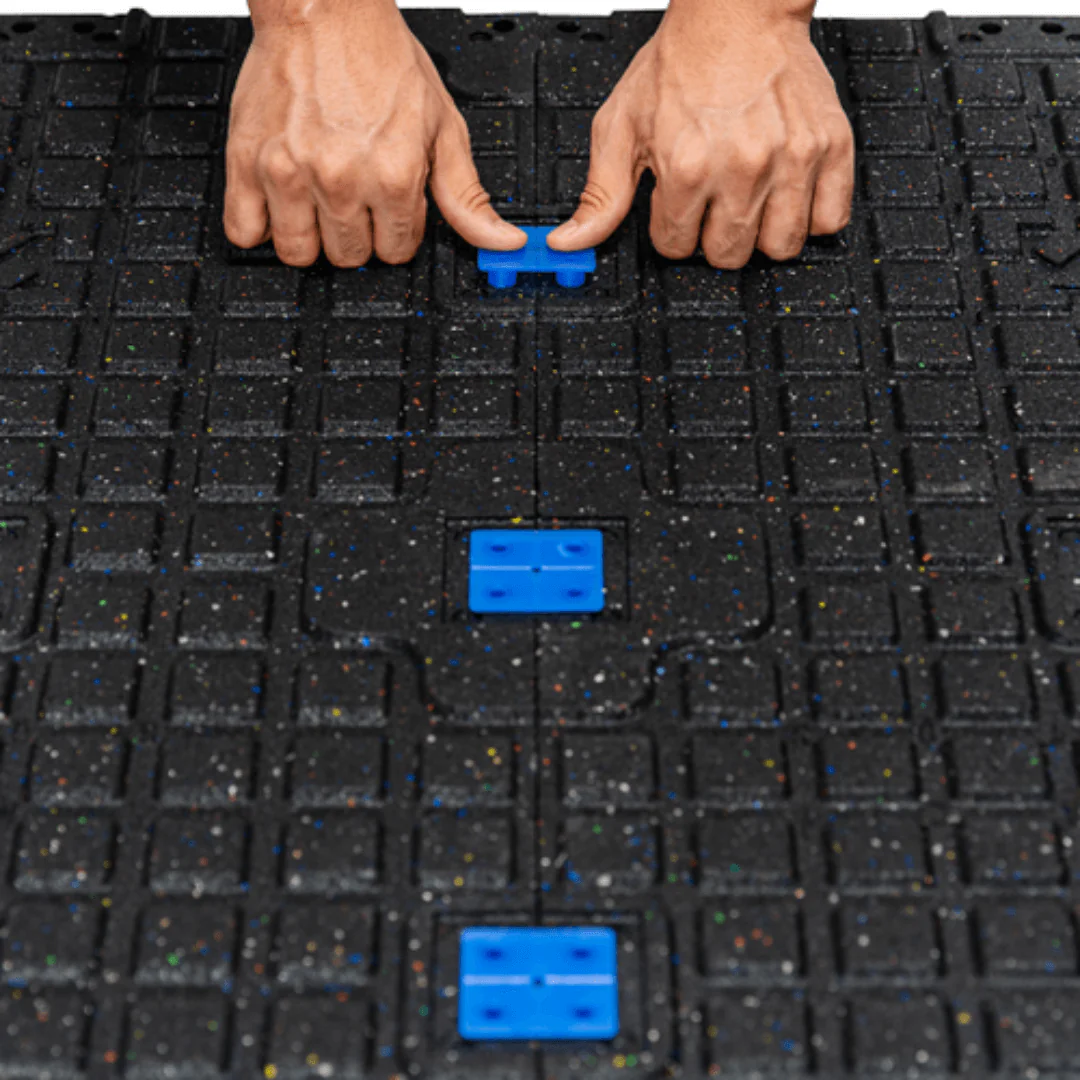

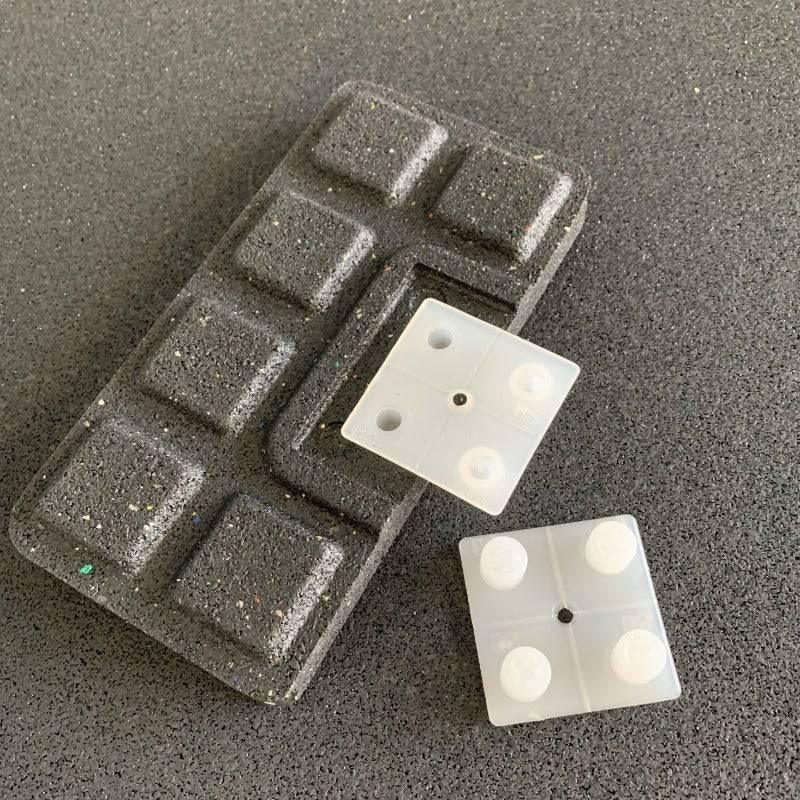

Connector pieces (hidden) are inserted underneath each tile to securely interlock them together, keeping them in place.  The tiles can also be loose laid or glued using adhesive.  The rubber can be cut to size using a utility knife.

The elastic tiles are produced under high temperatures and will shrink after production.  This means that there is always a dimension tolerance on length, width and thickness.  Due to the different dimensions of the tiles, we advise installing the tiles 'half brick wise' and not corner to corner.  It is important that the outer tiles are fixed between a wall or profile so that all tiles can be placed under compression.

Sub-floor

The sub-floor requires to be level, firm and dry.

Installation

View PDF Installation Guidelines or watch our Video Tutorial

Cleaning

View Cleaning & Maintenance Guide
